- Temp. Range: High Limit 130 Degrees to 240 Degrees F, Low Limit 110 Degrees to 220 Degrees F
- Spud Size: 3/4 to 14 NPT
- Full Load Amps @ 120VAC: 8 A
- Full Load Amps @ 240VAC: 5.1 A
- Locked Rotor Amps @ 120V: 48 A
- Locked Rotor Amps @ 240V: 30.6 A
Specifications
| Part Number | L4081B1047 |
| Brand | Resideo |
| Temp. Range | High Limit 130 Degrees to 240 Degrees F, Low Limit 110 Degrees to 220 Degrees F |
| Differential | High Limit 10 Degrees F Fixed, Low Limit 10 Degrees to 25 Degrees F Adj. |
| Application | Circulator, High Limit |
| Mounting | Horizontal |
| Burner Control Circuit | 24V or 120V |
| Depth | 2 2/3 in |
| Spud Size | 3/4 to 14 NPT |
| Insulation Depth | 15 in |
| Width | 3 7/8 in |
| Height | 4 in |
| Overall Height | 3 7/8 in |
| Overall Depth | 2 3/4 in |
| Overall Width | 4 1/8 in |
| Item | Circulator Controller |
| Full Load Amps @ 120VAC | 8 A |
| Burner Control Circuit @ 120V (A) | 8 A |
| Humidity Range (% RH) | Non-Condensing 0 To 95 |
| Full Load Amps @ 240VAC | 5.1 A |
| Millvolt | 025 A @ 025 To 12 Vdc |
| Locked Rotor Amps @ 120V | 48 A |
| Requires | 3/4 in Spud 14 NPT |
| System Switching | SPST |
| Locked Rotor Amps @ 240V | 30.6 A |
| Agency Compliance | UL & CSA |
| Burner Control Circuit @ 24V (A) | 5.1 A |
| Type | High Limit and Circulator |
| Product Type | Circulator Controller |
| Maximum Control Temperature | 240 Degrees F |
| Minimum Control Temperature | 130 Degrees F |
| Input Voltage | 24V DC |
| Locked Rotor Current @ 120V | 48 A |
| Mounting Orientation | Horizontal |
| Full Load Current @ 240V AC | 5.1 A |
| Locked Rotor Current @ 240V | 30.6 A |
| Reset Type | Automatic Reset |
| Number of Switches | 2 |
| Burner Circuit Voltage Type | Millivolt |
| Full Load Current @ 120V AC | 8 A |
| Differential Temperature | 10 Degrees F Fixed (High Limit), 10 Degrees F to 25 Degrees F Adjustable (Low Limit) |
| Contact Form | SPST |
| Standards | LR95329-1, MBPR2, MP466, UL Listed |
| Auto/Manual Switch Included | Yes |
Description

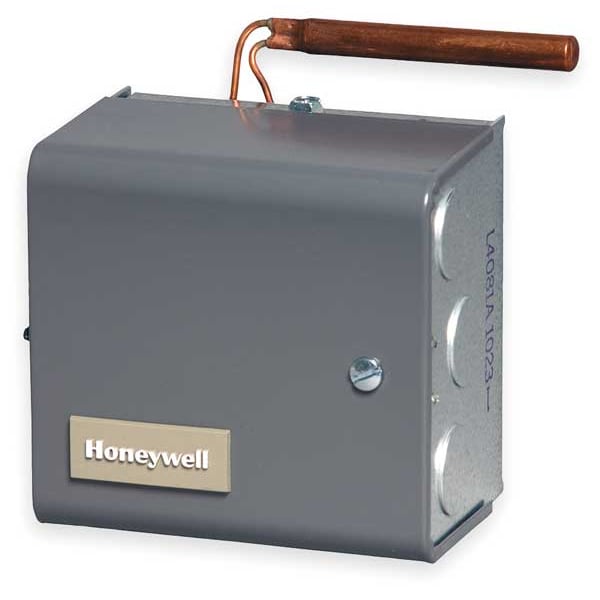

The Resideo L4081B1047 is a dual aquastat controller that functions as both a high limit and circulator controller. It manages circulator operation and high limit safety shutdown within a temperature range of 130°F to 240°F for the high limit and 110°F to 220°F for the low limit, with a 10°F differential. The controller is rated for 8 full load amps at 120VAC and 5.1 full load amps at 240VAC, with locked rotor amps of 48 at 120V and 30.6 at 240V.
