- Differential Temperature: 5 Degrees F to 30 Degrees F Adjustable
- Maximum Control Temperature: 240 Degrees F
- Minimum Control Temperature: 100 Degrees F
- Burner Circuit Voltage Type: Millivolt
Specifications
| Part Number | L4008B1013 |
| Brand | Resideo |
| Includes | 5 1/2 ft Capillary |
| Standards | LR95329-1, MBPR2, MP466, UL Listed |
| Application | Circulator |
| Product Type | Circulator Controller |
| Overall Height | 5 5/8 in |
| Overall Depth | 2 1/8 in |
| Overall Width | 2 in |
| Capillary Tube Length | 66 in |
| Item | Circulator Controller |
| Full Load Current @ 120V AC | 8 A |
| Differential Temperature | 5 Degrees F to 30 Degrees F Adjustable |
| Maximum Control Temperature | 240 Degrees F |
| Switch Action | Makes |
| Sensor Location | Remote |
| Locked Rotor Current @ 240V | 30.6 A |
| Reset Type | Automatic Reset |
| Full Load Current @ 240V AC | 5.1 A |
| Auto/Manual Switch Included | Yes |
| Locked Rotor Current @ 120V | 48 A |
| Minimum Control Temperature | 100 Degrees F |
| Number of Switches | 1 |
| Burner Circuit Voltage Type | Millivolt |
| Contact Form | SPST |
| Mounting Orientation | Horizontal, Vertical |
Description

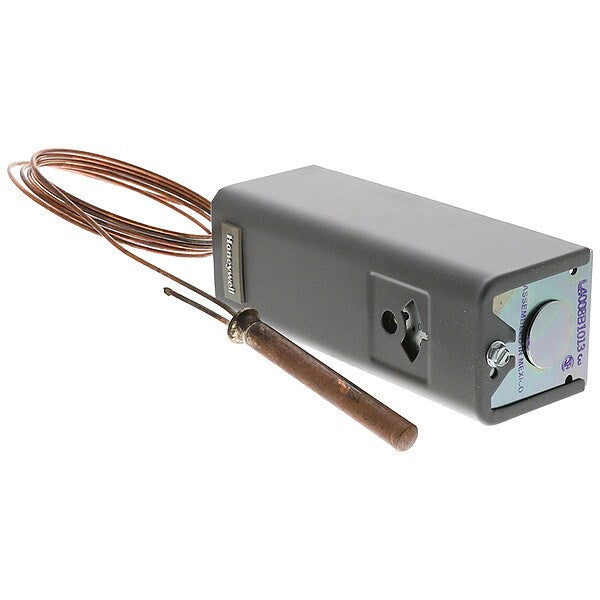

The Resideo L4008B1013 is a remote bulb aquastat circulator controller. It functions to control a circulator based on sensed temperature, making a contact on rise within an adjustable 100°F to 240°F range with a 5°F to 30°F adjustable differential. This controller includes a 5 1/2 ft capillary and is UL Listed under standards LR95329-1, MBPR2, and MP466.
