- Ambient Temp. Range: -20 to 150
- Voltage (AC): 24
- Output Amps: 10 VA
- Maximum Ambient Temperature: 165 Degrees F
- Nameplate Voltage: 24V AC
- Minimum Ambient Temperature: -40 Degrees F
Specifications
| Part Number | HZ322 |
| Brand | Resideo |
| Type | TrueZONE(R) 3-Zone Panel |
| Includes | AT140A1042 40 VA transformer, DATS C7735A1000 Discharge Air Temperature Sensor |
| Connection | Push-Button Terminals |
| For Use With | Redlink TM used with 3RCP1 Wireless Adapter |
| Requires | 2 Heat, 2 Cool Thermostat |
| Width | 8 in |
| Height | 11 1/2 in |
| Depth | 2 in |
| Overall Width | 8 in |
| Overall Height | 11 1/2 in |
| Overall Depth | 1 7/8 in |
| Item | Zone Panel |
| Application | Controls Air Flow In Heating And Cooling Systems |
| Color | Gray |
| Ambient Temp. Range | -20 to 150 |
| Voltage (AC) | 24 |
| Terminal Designations | C, G, L, M1, M4, M6, O/B, R, Rc, W, W1/E, W2, Y, Y1, Y2 |
| Output Amps | 10 VA |
| Power Method | 24 Vac |
| Product Type | Zone Panel |
| Maximum Ambient Temperature | 165 Degrees F |
| Number of Zones | 3 |
| Connection Type | Push-Button Terminals |
| Requires Thermostat Type | 2 Cool, 2 Heat |
| Full Load Current | 7.5 A |
| Nameplate Voltage | 24V AC |
| Housing Color | Gray |
| Minimum Ambient Temperature | -40 Degrees F |
Description

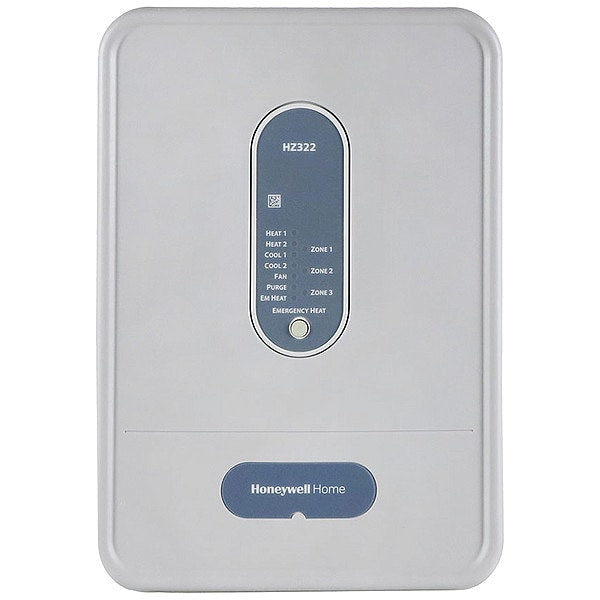

The Resideo HZ322 is a TrueZONE(R) 3-Zone Panel that controls air flow in heating and cooling systems. This 24 VAC zone panel includes a 40 VA transformer and a Discharge Air Temperature Sensor, and it is compatible with Redlink⢠when used with the 3RCP1 Wireless Adapter.
