- Body Material: Bronze
- Connection Size: 1/2 in
- Port Connection Size: 1/2 in
- Max. Water Temp.: 284 Degrees F
- Safe Working Water Pressure: 308 psi
- Trim Material: Brass
Specifications
| Part Number | VG7241ET |
| Brand | Johnson Controls |
| Body Material | Bronze |
| Valve Design | 2-Way |
| Connection Type | (F)NPT |
| Connection Size | 1/2 in |
| Height | 4 3/4 in |
| Width | 3 in |
| Depth | 1 5/8 in |
| Overall Height | 4 3/4 in |
| Port Connection Size | 1/2 in |
| Overall Depth | 1 5/8 in |
| Overall Length | 3 in |
| Item | Hydronic Globe Valve |
| Configuration | Straight-Thru |
| Max. Water Temp. | 284 Degrees F |
| For Use With | M9000 Series Actuators and Pneumatic Actuators |
| Includes | Valve Only |
| Safe Working Water Pressure | 308 psi |
| Trim Material | Brass |
| Coefficient of Volume | 1.8 |
| Safe Working Steam Pressure | 38 psi |
| Valve Action | Normally Open |
| Body Pattern | Two-Way |
| Leakage Rate | 0.01% |
| Specific Valve Action | Stem Down to Close |
| Port Connection Gender | Female |
| Installation Orientation | Vertical |
| Flow Characteristic | Equal Percentage |
| Operating Temperature - Minimum | 35 Degrees F |
| ANSI Rating | ANSI Leakage Class IV |
| Allowable Pressure - Maximum | 400 psi |
| Stem Material | Stainless Steel |
| Rangeability | 100:1 |
| Actuator Return Action | Spring Return |
| Coefficient of Volume (Cv) | 1.8 |
| Manufacturer Series | VG7000 |
| For Media | Water-Glycol Solution to 50%, Water, Steam |
| Port Connection Type | NPT |
| Operating Temperature - Maximum | 248 Degrees F |
| Resistance Properties | Corrosion Resistant |
| Packing Material | Ethylene Propylene |
| Seat Material | Brass |
| Includes Actuator | Actuator Not Included |
Description

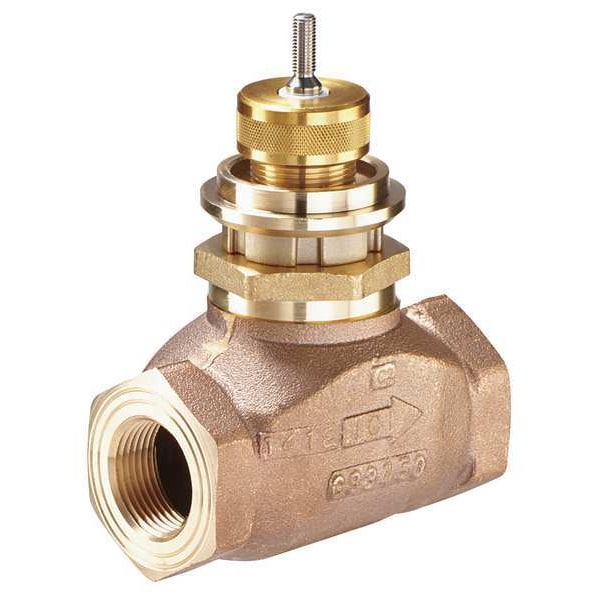

The Johnson Controls VG7241ET is a 2-way, normally open hydronic globe valve with a bronze body and 1/2-inch (F)NPT connections. This type of valve regulates fluid flow in hydronic systems, and this specific model has a Cv of 1.8 and a maximum water temperature of 284 degrees Fahrenheit. It is designed for use with M9000 Series actuators and pneumatic actuators.
