- Voltage: 24V AC
- Ambient Temp. Range: -4 Degrees to 140 Degrees F
- Control Signal: Floating Point
- Operating Temperature - Maximum: 140 Degrees F
- Frequency: 60 Hz
- NEMA Rating: 2
Specifications
| Part Number | VA9104-AGA-3S |
| Brand | Johnson Controls |
| Voltage | 24V AC |
| Signal Type | Floating |
| Torque | 35 in-lb |
| Cycle Time | 60 sec |
| Ambient Temp. Range | -4 Degrees to 140 Degrees F |
| Height | 2 45/64 in |
| Width | 2 13/16 in |
| Depth | 5 1/2 in |
| Overall Height | 2 11/16 in |
| Overall Width | 2 13/16 in |
| Stroke Length | Not Rated |
| Overall Depth | 5 1/2 in |
| Item | Electric Ball Valve Actuator |
| Electrical Connections | Screw Terminals |
| Enclosure Rating | NEMA 2 |
| Mounting | Direct Mount |
| Type of Actuator | Non-Spring Return |
| Power Consumption | 2.3 VA |
| Stroke Deg. | 93 |
| For Use With | JCI VG1000 Ball Valve |
| Includes | M3 Screw Terminals |
| Ball Valve Product Group | Actuated |
| Standards | CCN XAPX File 27734 Plenum Rated, NEC Section 300.22.(c), UL 2043 |
| Product Type | Electric Ball Valve Actuator |
| Return Action | Non-Spring Return |
| Number of Auxiliary Switches | 0 |
| Control Signal | Floating Point |
| Operating Temperature - Maximum | 140 Degrees F |
| Frequency | 60 Hz |
| Mounting Style | Direct Mount |
| Compatible Valve Action | Normally Closed, Normally Open |
| NEMA Rating | 2 |
| Electrical Connection Type | Screw Terminals |
| Housing Material | Plastic |
| Compatible Valve Body Pattern | Three-Way, Two-Way |
| Compatible Series | VG1000 |
| Stroke Degree | 93 Degrees |
| Compatible Brand | Johnson Controls |
| Compatible Manufacturer Model Number | VG1241AA+9T4AGA, VG1241AB+9T4AGA, VG1241AC+9T4AGA, VG1241AD+9T4AGA, VG1241AE+9T4AGA, VG1241AF+9T4AGA, VG1241AG+9T4AGA, VG1241AL+9T4AGA, VG1241AN+9T4AGA, VG1241BG+9T4AGA, VG1241BL+9T4AGA, VG1241BN+9T4AGA, VG1241CL+9T4AGA, VG1241CN+9T4AGA, VG1241CP+9T4AGA |
| Application | Air Conditioning, Heating, Ventilation |
| Operating Temperature - Minimum | -4 Degrees F |
Description

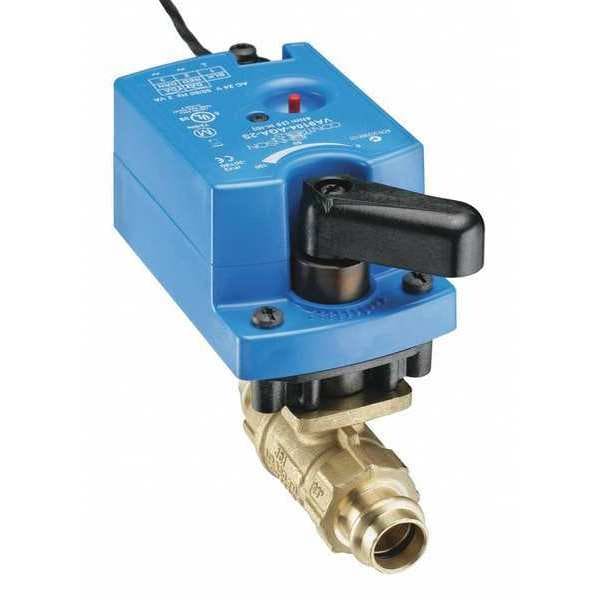

The Johnson Controls VA9104-AGA-3S is a non-spring return electric ball valve actuator. It operates on 24V AC with a floating signal type and provides 35 lb-in of torque. This actuator is designed for use with JCI VG1000 ball valves and features screw terminals with a NEMA 2 enclosure rating, functioning within an ambient temperature range of -4 to 140 degrees Fahrenheit.
