- Voltage: 24V AC
- Ambient Temp. Range: To 131 Degrees F
- Operating Temperature - Minimum: 23 Degrees F
- Operating Temperature - Maximum: 131 Degrees F
- Control Signal: Floating Point, On/Off, Proportional
- Frequency: 50/60 Hz
Specifications
| Part Number | VA7810-HGA-2 |
| Brand | Johnson Controls |
| Voltage | 24V AC |
| Signal Type | Proportional/On-Off/Floating |
| Torque | 180 in-lb |
| Cycle Time | 76 sec |
| Ambient Temp. Range | To 131 Degrees F |
| Depth | 8 3/8 in |
| Height | 9 in |
| Width | 4 1/2 in |
| Overall Height | 9 5/8 in |
| Overall Depth | 8 3/8 in |
| Stroke Length | 2 in |
| Overall Width | 4 9/16 in |
| Electrical Lead Length | 4 ft |
| Item | Electric Globe Valve Actuator |
| Type of Actuator | Non-Spring Return |
| Includes | Valve Linkage |
| For Use With | Globe Valves |
| Electrical Connections | Cable |
| Power Consumption | 6 VA |
| Stroke Deg. | 1 |
| Standards | CCN XAPX File E194024, CE, EMC Directive 2004/108/EC, Low Voltage Directive 2006/95/EC, UL 60730 Listed Type 1 Enclosure |
| Product Type | Electric Globe Valve Actuator |
| Mounting Style | Direct Mount |
| Operating Temperature - Minimum | 23 Degrees F |
| Compatible Brand | Johnson Controls |
| Operating Temperature - Maximum | 131 Degrees F |
| Return Action | Non-Spring Return |
| Application | Chilled/Hot Water Control, Steam Control |
| Includes Electrical Leads | Electrical Leads Included |
| Control Signal | Floating Point, On/Off, Proportional |
| Auxiliary Contact Form | SPDT |
| Compatible Series | VG7000 |
| Frequency | 50/60 Hz |
| Installation Orientation | Horizontal Preferred |
| Number of Auxiliary Switches | 0 |
| Electrical Connection Type | Cable |
| Stroke Degree | 1 Degrees |
| NEMA Rating | 2 |
| Shaft Type | Integrated Shaft for Valve |
Description

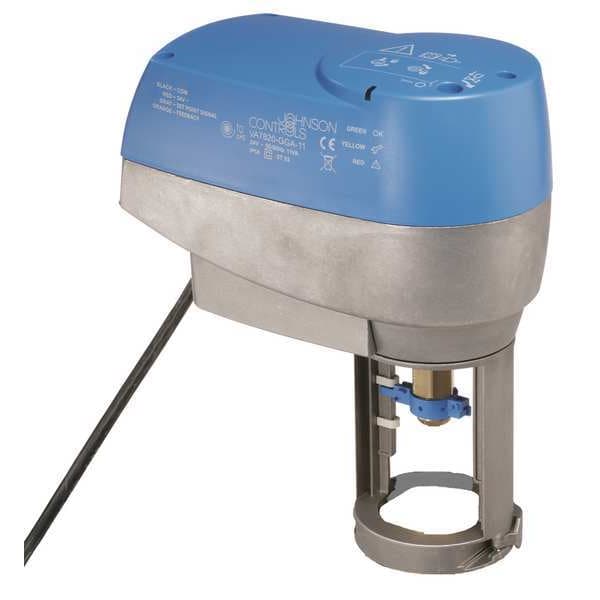

The Johnson Controls VA7810-HGA-2 is a 24V AC non-spring return electric globe valve actuator with 180 in.-lb. torque. It accepts proportional, on-off, or floating signal types and operates in ambient temperatures up to 131 degrees F. The actuator includes valve linkage and connects via cable for use with globe valves.
