- Body Material: Cast Iron
- Connection Size: 1-1/4
- Pressure Connection Size: 1/4 in
- Pipe Connection Size: 1 1/4 in
- Design Pressure (PSIG): 320 psig
- Operating Pressure - Maximum: 320 psi
Specifications
| Part Number | V46AE-1C |
| Brand | Johnson Controls |
| Body Material | Cast Iron |
| Replacement Cartridge | SEP91A-603R |
| Set Points | 70 to 260 |
| Connection | NPT |
| Port | 1 1/4 in |
| Connection Size | 1-1/4 |
| Capillary Length | 30 in |
| Pressure Connection Size | 1/4 in |
| Pipe Connection Size | 1 1/4 in |
| Item | Pressure Regulating Valve |
| For Use With | Non Corrosive Refrigerants |
| Application | Head Pressure Control with Non-Corrosive Refrigerants |
| Design Pressure (PSIG) | 320 psig |
| Repair Kit | STT17A-610R |
| Type | 2 Way |
| Operating Pressure - Maximum | 320 psi |
| For Refrigerant Type | R-134A, R-22, R-404A, R-502, R-507 |
| For Repair Kit - Manufacturer Model Number | STT17A-609R |
| Replacement Cartridge - Manufacturer Model Number | SEP91A-603R |
| Pipe Connection Type | NPT |
| Number of Ports | 2 |
| Number of Ways | Two-Way |
| For Media State | Liquid |
| Actuation Mechanism | Pressure |
| Orientation | Vertical |
| Opening Point Adjustment | Adjustable |
| Opening Pressure - Maximum | 260 psi |
| Disc Material | Brass |
| Pressure Connection Type | Flare |
| Opening Pressure - Minimum | 70 psi |
| Product Type | Pressure Regulating Valve |
| For Media | Water/Glycol |
| Flow Rate - Maximum | 69 gpm |
| Operating Temperature - Maximum | 170 Degrees F |
| Specific Valve Action | Opens on Rise |
| Internal Parts Material | Aluminum Bronze |
Description

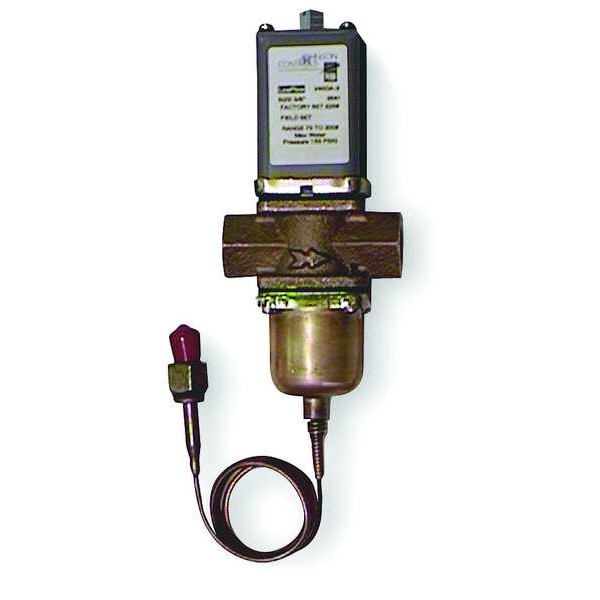

The Johnson Controls V46AE-1C is a pressure-actuated, 2-way water regulating valve with a cast iron body and 1-1/4" NPT connections. This valve modulates water flow to regulate head pressure in systems using non-corrosive refrigerants. It is specifically applied for head pressure control with non-corrosive refrigerants.
