- Body Material: Brass
- Maximum Pressure - Operating: 240 psi
- Operating Temperature - Minimum: 195 Degrees F
- Connection Size - Side 2: 1/2 in
- Nominal Valve Size: 1/2 in
- Connection Size - Side 1: 1/2 in
Specifications
| Part Number | V-3966-1001 |
| Brand | Johnson Controls |
| Body Material | Brass |
| Valve Design | 2-Way |
| Coefficient of Volume | 1.7 |
| Maximum Pressure - Operating | 240 psi |
| Operating Temperature - Minimum | 195 Degrees F |
| Connection Size - Side 2 | 1/2 in |
| Nominal Valve Size | 1/2 in |
| Connection Size - Side 1 | 1/2 in |
| Item | Pneumatically Actuated Diaphragm Valve |
| Connection Type - Side 2 | Flare |
| Diaphragm Valve Type | 2-Way |
| Ambient Temperature - Maximum | 150 Degrees F |
| Operating Temperature - Maximum | 281 Degrees F |
| Stem Material | Stainless Steel |
| Coefficient of Volume (Cv) | 1.7 |
| For Media | Water |
| Actuator Air Port Connection | 1/8 in NPT |
| Actuator Operation | Air to Spring |
| Diaphragm Material | Reinforced Synthetic Rubber |
| Connection Type - Side 1 | Flare |
| Valve Deactivated State | Normally Closed (NC) |
| Ambient Temperature - Minimum | -10 Degrees F |
| Valve Series | V-3966 |
Description

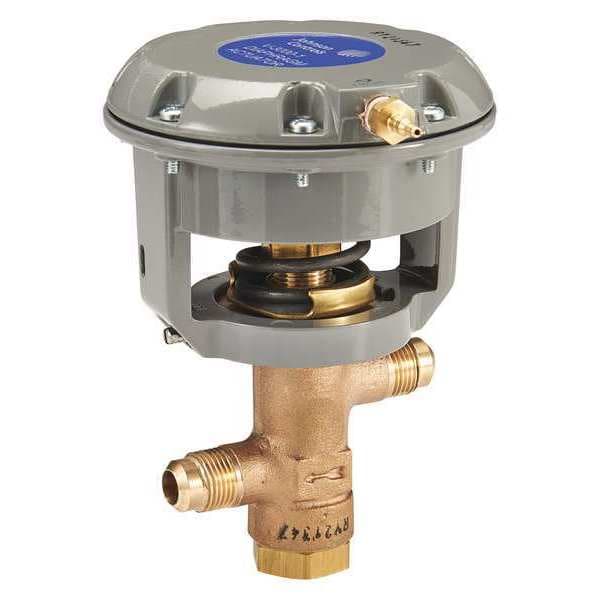

The Johnson Controls V-3966-1001 is a pneumatically actuated 2-way diaphragm valve with a brass body. This valve uses pneumatic pressure to open or close the valve, controlling the flow of the medium. It has 1/2-inch flare connections on both sides, a maximum operating pressure of 240 psi, and a minimum operating temperature of 195 degrees Fahrenheit.
