- Housing Material: Stainless Steel
- Process Connection Size: 1/4 in
- Process Connection Size - Transmitter: 1/4 in
- Pressure Range (In. WC): 0 to 13,840
- Max. Pressure (PSI): 750 psi
- Operating Temp. - Transmitter: -40 Degrees to 212 Degrees F
Specifications
| Part Number | P599VCPS107C |
| Brand | Johnson Controls |
| Accuracy | +/-1.50% |
| Housing Material | Stainless Steel |
| Output | 0 to 10V DC |
| Electrical Connections | 3-Pin Packard Connector |
| Process Connection Type | SAE 45 Degrees Flare |
| Process Connection Size | 1/4 in |
| Process Connection Size - Transmitter | 1/4 in |
| Manufacturers Warranty Length | 3 yr |
| Cable Length | 6.5 ft |
| Item | Pressure Transmitter |
| Power Required | 12 to 33V DC |
| Response Time | 5 msec |
| Series | P599 |
| Pressure Range (In. WC) | 0 to 13,840 |
| Range Values - Transmitter | 0 to 750 |
| Electrical Connections - Transmitter | Packard Connector |
| Max. Pressure (PSI) | 750 psi |
| Housing | 304L Stainless Steel |
| Range Units - Transmitter | psi |
| For Use With | Any Corrosive or Non-Corrosive Pressure Medium That is Compatible with 304L Stainless Steel, Including Water, Condensate, Carbon Dioxide, Glycol, Most Refrigerants Including Ammonia, Many Other Compatible Fluids and Gases |
| Power Required - Transmitters | 12 to 33V DC |
| Range | 0 to 750 psi |
| Compatible With | All Media Compatible with 304L Stainless Steel, Including Ammonia |
| Accuracy - Transmitter | +/-1.50% |
| Wiring Entry - Transmitter | None |
| Operating Temp. - Transmitter | -40 Degrees to 212 Degrees F |
| Wetted Materials - Transmitters | 304L Stainless Steel |
| Transmitter Type | Pressure Transmitter |
| Process Connection Type - Transmitter | SAE Flare Internal Thread |
| Calibration Certificate | No |
| Output - Transmitter | 0 to 10V DC |
| Loop Resistance | Minimum Between Transducer Body and Any Wire: 100 megaohm @ 500V DC |
| Safety Rating | Class I Div. 2 Group A FCC Part 15 Class B; Class I Div. 2 Group B FCC Part 15 Class B; Class I Div. 2 Group C FCC Part 15 Class B; Class I Div. 2 Group D FCC Part 15 Class B |
| Features | 10 Million Plus Full Scale Pressure Cycle Rated Life Span, Environmentally Protected Electronics, Industrial Duty Design |
| NIST Traceable Certificate | No |
| Maximum Loop Resistance | 100 Mega Ohm @ 500V DC |
| Number of Wires | 2 |
| Standards | CE, RoHS, UL Listed |
| Explosion/Fire Proof | No |
| Maximum Pressure | 750 psi |
| Pressure Units | psi |
| Fitting Material | Stainless Steel |
| Electrical Connection | 3-Pin Packard Connector |
| Maximum Operating Temperature | 212 Degrees F |
| Burst Pressure | 259 bar |
| IP Rating | IP67 |
| Minimum Pressure | 0 psi |
| Process Connection Gender | Male |
| Storage Temperature Range | -40 Degrees F to 257 Degrees F (-40 Degrees C to 125 Degrees C) |
| For Use With Media Type | Refrigerants |
| Minimum Operating Temperature | -40 Degrees F |
| Calibration Certificate Included | No |
| Intrinsically Safe | No |
| Overpressure | 3x Range |
| Type of Pressure | Sealed Gauge |
| Input Voltage | 12 to 33V DC |
| Process Media Temperature - Minimum | -40 Degrees F |
| Pressure Measurement - Maximum | 750 psi |
| Process Media Temperature - Maximum | 212 Degrees F |
| Includes NIST-Traceable Calibration Certificate | No NIST-Traceable Calibration Certificate Included |
| Intrinsic Safety | Not Specified Intrinsically Safe |
| Pressure Measurement - Minimum | 0 psi |
| Pressure Type Measured | Sealed Gauge |
| Output Power | 0 to 10V DC |
| Loop Resistance - Maximum | 100 Mega Ohm @ 500V DC |
Description

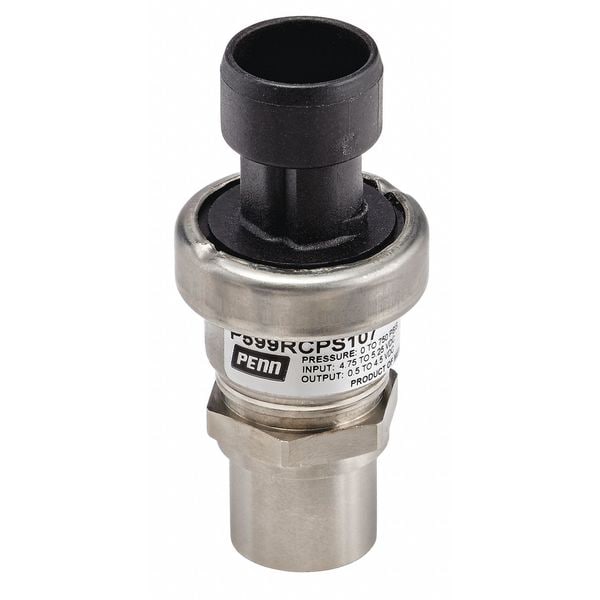

The Johnson Controls P599VCPS107C is a pressure transmitter from the P599 series. This sensor converts applied pressure into a 0 to 10 VDC output signal, with a pressure range of 0 to 13,840 in. WC (0 to 750 psi). It features a stainless steel housing and a 1/4 in SAE 45-degree flare process connection with a 3-pin Packard connector.
