- Input Volts AC @ 60/50 Hz: 460/575
- Triac Output Amps: 4
- Ambient Temp. Range (C): -40 to 60
- Number of Pressure Sensors Included: 0
- Output Voltage: 460/575V AC
- NEMA Rating: 3R
Specifications
| Part Number | P266BCA-100 |
| Brand | Johnson Controls |
| Controls | Single Stage Condenser Fans |
| Hard Start Timing (Sec.) | 2 sec |
| Requires | P266SNR-1C or P266SNR-2C |
| Input Volts AC @ 60/50 Hz | 460/575 |
| Triac Output Amps | 4 |
| Overall Width | 7 in |
| Overall Depth | 2 3/4 in |
| Overall Height | 6 1/4 in |
| Item | Fan Speed Control |
| Control Volts | 460/575 |
| Ambient Temp. Range (C) | -40 to 60 |
| Items Controlled | Fans |
| Number of Pressure Sensors Included | 0 |
| Number of Inputs | Pressure Sensor (1) |
| Output Voltage | 460/575V AC |
| Product Type | Fan Speed Control |
| NEMA Rating | 3R |
| Switch Type | Dual Slide |
| Input Voltage | 460/575V AC |
| Output Current | 4 A |
| Input Sensor Type | Pressure Sensor |
| Series | P266 |
| Contact Form | SPST |
| Minimum Temperature Setting | -40 Degrees F |
| Maximum Operating Temperature | 140 Degrees F |
| Frequency | 50/60 Hz |
| Maximum Temperature Setting | 140 Degrees F |
| Body Material | Aluminum |
| Electrical Connection Type | Quick Connect Terminals |
| Minimum Control Pressure Setpoint | 0 psi |
| IP Rating | IP54 |
| Primary Voltage | 460/575V AC |
| Maximum Control Pressure Setpoint | 754 psi |
| Minimum Operating Temperature | -40 Degrees F |
| Plate Material | Aluminum |
| Application | Air Conditioning, Refrigeration |
| Percentage of Supply Voltage to Start | 40 % |
| Number of High VAC TRIACs | 1 |
| Standards | C-Tick Compliant (N1813), C-UL-US, CE Listed, FCC, ICES-003 |
| Weight | 2.2 lb |
| Number of Auxiliary Contacts | 0 |
Description

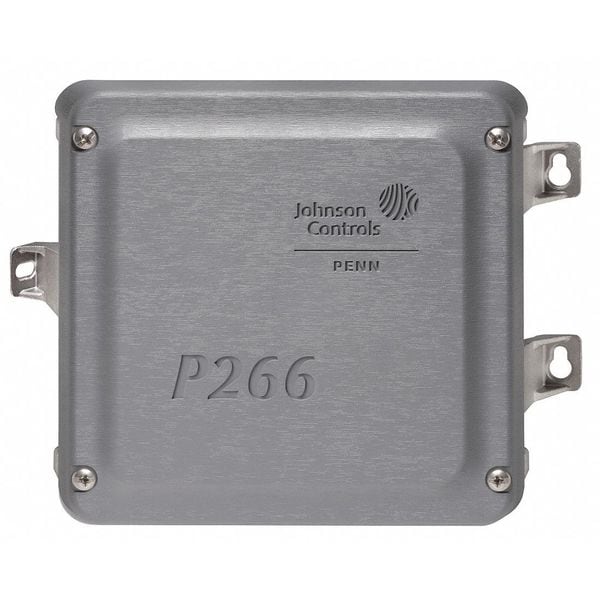

The Johnson Controls P266BCA-100 is a fan speed control for HVAC equipment. This type of part regulates the speed of a condenser fan based on system demand. It operates on 460/575V AC input and output, with a triac output rated at 4 amps, and carries a NEMA 3R rating.
