- Operating Temp. Range (F): -40 to 248
- Overall Diameter: 1/4 in
- Probe Diameter: 1/4 in
- Maximum Sensing Temperature: 248 Degrees F
- Minimum Operating Temperature: -40 Degrees F
- Maximum Operating Temperature: 248 Degrees F
Specifications
| Part Number | A99BC-300 |
| Brand | Johnson Controls |
| Color | Gray |
| Operating Temp. Range (F) | -40 to 248 |
| Height | 3 in |
| Dia. | 1/4 in |
| Type | High Temperature Silicon Cable |
| Length | 108 in |
| Overall Diameter | 1/4 in |
| Overall Length | 108 in |
| Overall Height | 3 in |
| Overall Depth | 2 in |
| Probe Diameter | 1/4 in |
| Probe Length | 2 in |
| Sensor Cable Length | 9 3/4 ft |
| Item | Temperature Sensor |
| For Use With | System 350, System 450 |
| Nominal Sensor Ohms @ 75F | 1035 |
| Function | Temperature Sensor |
| Compatible Brand and Series | Johnson Controls A99B Series |
| Accessory Type | Temperature Sensor |
| Compatible Manufacturer Model Number | A255, A419, A421, DX-9100, R78, System 27, System 350, System 450, XP-9102, XPA-4x1, XPA-8x1 |
| Series | A99B |
| Maximum Sensing Temperature | 248 Degrees F |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Minimum Operating Temperature | -40 Degrees F |
| Electrical Connection Type | Hardwired |
| Measurement Type | Single |
| Display Type | None |
| Sensing Element Type | Silicon |
| Application | Condenser Fan Cycling, Refrigerator, Cooler and Freezer Temperature Monitoring, Return Air Temperature Monitoring, Space Temperature Monitoring |
| Housing Color | Gray |
| Maximum Operating Temperature | 248 Degrees F |
| Minimum Sensing Temperature | -40 Degrees F |
| Housing Material | Stainless Steel |
| Temperature Accuracy | +/-0.9 Degrees F |
| Product Type | Temperature Sensor |
| Loop Resistance | 1,035 ohm |
Description

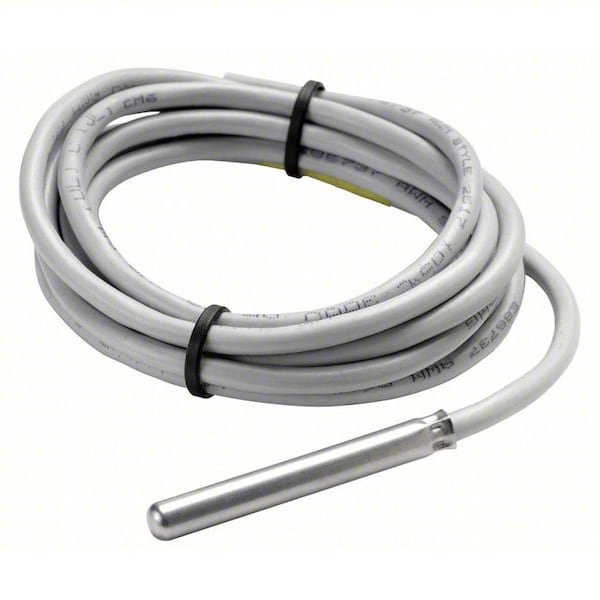

The Johnson Controls A99BC-300 is a high-temperature silicon cable temperature sensor from the A99B Series. As a temperature sensor, it measures ambient or surface temperature and converts it into a resistance signal for a controller. This sensor is compatible with Johnson Controls System 350 and System 450 controllers, as well as models A255, A419, A421, DX-9100, R78, System 27, XP-9102, XPA-4x1, and XPA-8x1. It operates over a -40 to 248°F range and has a nominal resistance of 1035 ohms at 75°F.
