- Voltage: 120/208/240/277V AC
- Mounting Hole Diameter: 1/2 in
- Minimum Control Temperature: 20 Degrees F
- Temperature Scale: Celsius, Fahrenheit
- Maximum Control Temperature: 80 Degrees F
- Temperature Control Range: 20 Degrees to 80 Degrees F
Specifications
| Part Number | A19BUC-2 |
| Brand | Johnson Controls |
| Voltage | 120/208/240/277V AC |
| Stages | 1C, 1H |
| Standards | CSA Certified, UL Listed |
| Sensor Type | Coiled Bulb Thermostat |
| Control Type | External Knob |
| Overall Width | 6 1/16 in |
| Overall Depth | 3 15/16 in |
| Overall Height | 3 in |
| Mounting Hole Diameter | 1/2 in |
| Capillary Length | 6 ft |
| Bulb Length | 2 1/2 in |
| Item | CONTROL |
| Number of Relay Inputs | 1 |
| Contact Rating | 120/277V AC |
| Minimum Control Temperature | 20 Degrees F |
| Application | Heat and Cool |
| Temperature Scale | Celsius, Fahrenheit |
| Pilot Duty Rating | 125 VA @ 24 to 600V AC |
| Maximum Control Temperature | 80 Degrees F |
| Temperature Control Range | 20 Degrees to 80 Degrees F |
| Electrical Connection Type | Screw Terminals |
| Battery Type | Value |
| Differential Type | Fixed |
| Compatible System Type | SPDT Coiled Bulb |
| Temperature Differential | 3.5 Degrees F |
| Shape | Rectangle |
| Changeover Type | Manual |
| Thermostat Type | Fixed Differential |
| Operating Humidity Range | No |
| Mounting Direction | Vertical |
| Fan Settings | No Fan Setting |
| Inductive Amps @ 208V | 9.2 A |
| Hazardous Location Division | Division 1 |
| Full Load Amps @ 240V AC | 8 A |
| Full Load Amps @ 120V AC | 16 A |
| Hazardous Location Class | D, E, F, G |
| Inductive Amps @ 240V | 8 A |
| Number of Switches | 1 |
| Number of Cooling Stages | 1 |
| Number of Heating Stages | 1 |
| Contact Type | Snap Action |
| Enclosure Material | Aluminum |
| Locked Rotor Amps @ 120V | 96 A |
| Enclosure Color | Natural |
| Fan Delay | No |
| Switch Type | SPDT |
| Locked Rotor Amps @ 240V | 48 A |
| Number of Poles | 1 |
| Inductive Amps @ 120V | 16 A |
| Enclosure NEMA Rating | 7, 9 |
| Enclosure Finish | Natural Aluminum |
| Switch Action | Close on Rise; Open on Rise |
| Switch Type/Action | SPDT/Snap Action |
Description

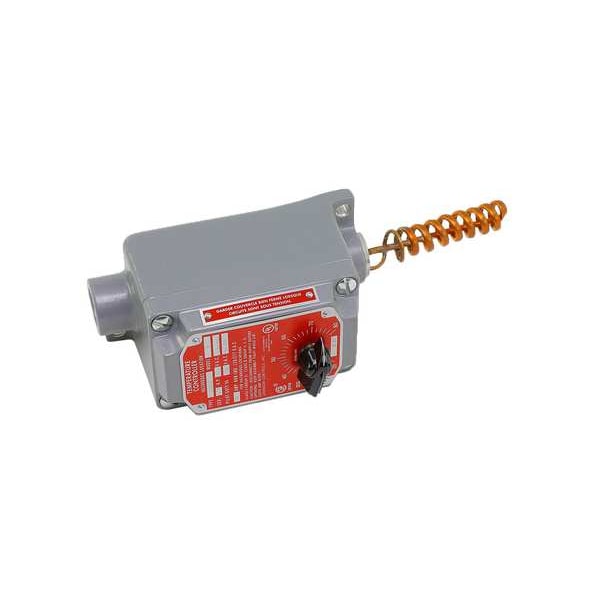

The Johnson Controls A19BUC-2 is a coiled-bulb thermostat control. This control regulates temperature by opening or closing a circuit based on the sensed temperature at the bulb. It is rated for 120/208/240/277V AC and has a minimum control temperature of 20 degrees Fahrenheit. The A19BUC-2 is CSA Certified and UL Listed for heat and cool applications.
