- Body Material: Brass
- Connection Type/Size: (F)NPT 1/2
- Port Connection Size: 1/2 in
- Max. Water Temp. (Deg. F): 36 to 248
- Operating Temperature - Maximum: 230 Degrees F
- Operating Temperature - Minimum: 36 Degrees F
Specifications
| Part Number | V5862A2054 |
| Brand | Honeywell |
| Body Material | Brass |
| Overall Height | 3 in |
| Overall Length | 2 11/32 in |
| Connection Type/Size | (F)NPT 1/2 |
| Includes | Installation Manual |
| Height | 3 in |
| Width | 3/4 in |
| Depth | 3 in |
| Port Connection Size | 1/2 in |
| Overall Depth | 1 3/16 in |
| Item | Hydronic Globe Valve |
| For Use With | Water or Glycol Solution 50% Max |
| Safe Working Steam PSI | 40.5 psi |
| Agency Compliance | CRN |
| Description/Special Features | For Use With Series 1000 Actuators: M6410, M7410, M6435, M7435 & Mp958 Pneumatic Actuator |
| Max. Water Temp. (Deg. F) | 36 to 248 |
| Type | 2-Way, Cartridge |
| Safe Working Water PSI | 240 psi |
| Coefficient of Volume | 1.9 |
| Specifications | Long Stroke Allows Wider Range Of Control. Soft Valve Seat Provides Low Leakage Rate. Threaded Plastic Cover/Manual Handle Allows Manual Operation. Easily Installed In Areas Where Space Is Limited. |
| Stem Travel | 1/4 in |
| Manufacturer Series | V58 |
| Includes Actuator | Actuator Not Included |
| Specific Valve Action | Stem Down to Close |
| Operating Temperature - Maximum | 230 Degrees F |
| Coefficient of Volume (Cv) | 1.9 |
| Body Pattern | Two-Way |
| Port Connection Type | NPT |
| Leakage Rate | 0.01% |
| Configuration | Straight-Thru |
| Operating Temperature - Minimum | 36 Degrees F |
| Cartridge Material | Brass |
| Stem Material | Stainless Steel |
| Port Connection Gender | Female |
| Seat Material | Brass |
| Close-Off Pressure | 174 psi |
| Flow Characteristic | Equal Percentage |
| Valve Action | Normally Closed, Normally Open |
| Rangeability | 100:1 |
| For Media | Water-Glycol Solution to 50% |
| ANSI Rating | ANSI Leakage Class IV |
Description

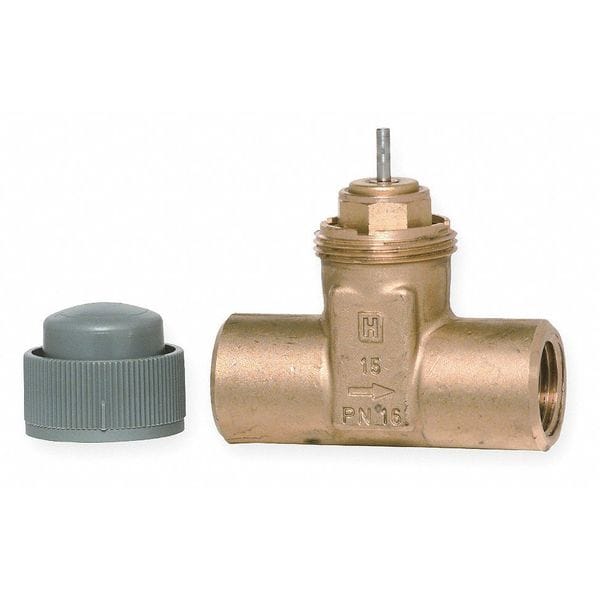

The Honeywell V5862A2054 is a two-way hydronic globe valve constructed from brass. This valve regulates the flow of water or a 50% maximum glycol solution, and it is designed for use with Honeywell Series 1000 actuators, including models M6410, M7410, M6435, M7435, and the MP958 pneumatic actuator.
