- Max. Air Pressure: 29 psi
- Air Connection Size: 1/4 in
- Control Pressure - Maximum: 29 psi
- Diaphragm Material: Neoprene
Specifications
| Part Number | MP918B1006 |
| Brand | Honeywell |
| Length | 18 1/4 in |
| Max. Air Pressure | 29 psi |
| Nominal Spring Range | 3 to 13 psi |
| Height | 6 7/8 in |
| Includes | External Mounting Bracket and Crank Arm Assembly |
| Width | 6 5/8 in |
| Overall Width | 6 5/8 in |
| Overall Depth | 6 7/8 in |
| Overall Length | 18 1/4 in |
| Air Connection Size | 1/4 in |
| Item | Pneumatic Damper Actuator |
| For Use With | Medium to Large Dampers |
| Operating PSI Range | 3 to 13 |
| Provides | Control of Medium to Large Dampers |
| Net Force Exerted @ 18 PSI | 89 lb |
| Stroke | 3 1/2 in |
| Net Force Exerted @ 0 PSI | 50 lb |
| Application | Dampers |
| Mounting Hardware Included | Crank Arm Assembly, External Mounting Bracket |
| Control Pressure - Maximum | 29 psi |
| Includes Positioner | Positioner Included |
| Actuator Connection | Clevis |
| Diaphragm Material | Neoprene |
| Air Connection Gender | Male |
| Spring Range Maximum | 13 psi |
| Force at 0 psi | 50 lbf |
| Spring Range Minimum | 3 psi |
| For Media | Air |
| Air Connection Type | Barbed Hose, Push-On |
| Fire/Smoke Application | UL Recognized Components for Fire/Smoke Applications |
| Actuator Type | Linear |
Description

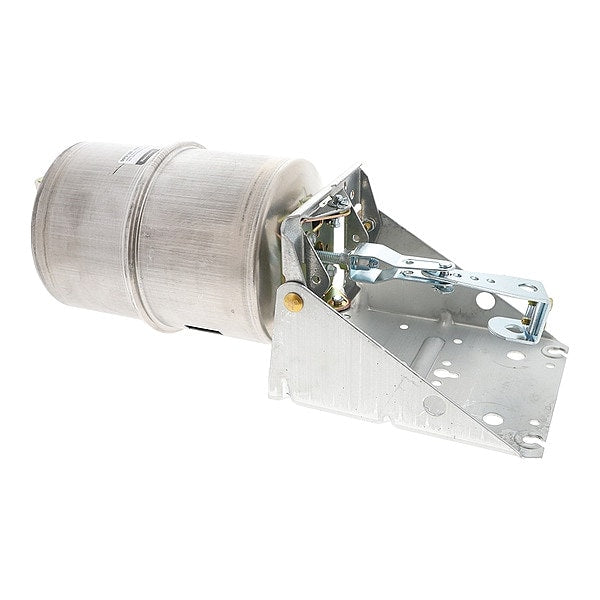

The Honeywell MP918B1006 is a pneumatic damper actuator, a linear pneumatic piston operator designed for use with medium to large dampers. It operates within a 3 to 13 psi range and includes an external mounting bracket and crank arm assembly, with a maximum air pressure of 29 psi and a 1/4-inch air connection.
