- Air Connection Size: 3/16 in, 1/4 in
- Max. Air Pressure: 25 psi
- Control Pressure - Maximum: 25 psi
- Diaphragm Material: Neoprene
Specifications
| Part Number | MP918A1024 |
| Brand | Honeywell |
| Provides | Control of Medium to Large Dampers |
| Height | 8 in |
| Width | 6 5/8 in |
| Length | 20 1/2 in |
| Includes | External Mounting Bracket, Crank Arm Assembly, and Positive Positioner |
| Overall Width | 6 5/8 in |
| Overall Length | 20 1/2 in |
| Air Connection Size | 3/16 in, 1/4 in |
| Overall Depth | 8 in |
| Net Force Exerted @ 18 PSI | 83 lb |
| Operating PSI Range | 8 to 13 |
| Max. Air Pressure | 25 psi |
| Item | Pneumatic Damper Actuator |
| Stroke | 3 1/2 in |
| Nominal Spring Range | 8 to 13 psi |
| Net Force Exerted @ 0 PSI | 160 lb |
| For Use With | Medium to Large Dampers |
| Application | Dampers |
| Control Pressure - Maximum | 25 psi |
| Force at 0 psi | 160 lbf |
| For Media | Air |
| Air Connection Type | Barbed Hose, Push-On |
| Includes Positioner | Positioner Included |
| Air Connection Gender | Male |
| Fire/Smoke Application | UL Recognized Components for Fire/Smoke Applications |
| Mounting Hardware Included | Crank Arm Assembly, External Mounting Bracket |
| Actuator Type | Linear |
| Spring Range Minimum | 8 psi |
| Diaphragm Material | Neoprene |
| Spring Range Maximum | 10 psi |
| Actuator Connection | Clevis |
Description

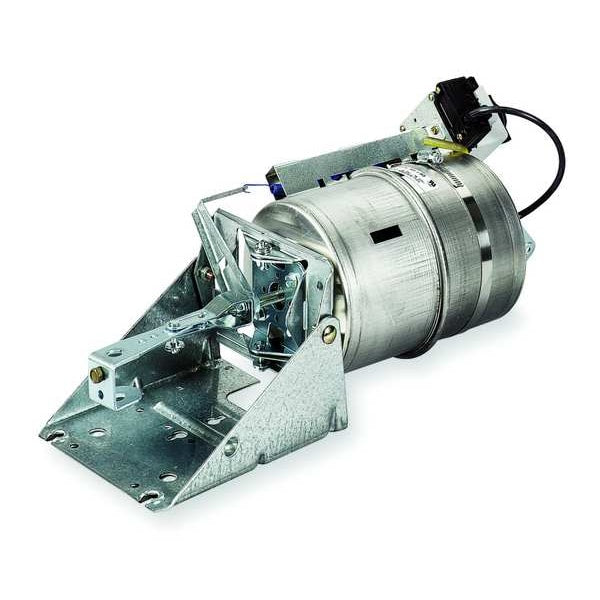

The Honeywell MP918A1024 is a pneumatic damper actuator. This linear pneumatic actuator uses air pressure to position dampers, operating within an 8 to 13 PSI range and a maximum air pressure of 25 psi. It is designed for use with medium to large dampers and includes an external mounting bracket, crank arm assembly, and positive positioner.
