- Air Connection Size: 3/16 in, 1/4 in
- Max. Air Pressure: 29 psi
- Operating Temperature - Maximum: 160 Degrees F
- Control Pressure - Minimum: 3 psi
- Control Pressure - Maximum: 29 psi
- Diaphragm Material: Neoprene
Specifications
| Part Number | MP909E1018 |
| Brand | Honeywell |
| Operating PSI Range | 3 to 13 |
| Stroke | 4 in |
| Net Force Exerted @ 0 PSI | 19.8 lb |
| Includes | Fixed External Mounting Bracket and Ball Joints |
| Provides | Operating Ranges for Independent Operation or Sequence Operation with Other Actuators |
| Length | 17 in |
| Height | 6 7/8 in |
| Width | 6 3/8 in |
| Overall Length | 17 in |
| Overall Width | 6 5/8 in |
| Overall Depth | 6 7/8 in |
| Air Connection Size | 3/16 in, 1/4 in |
| Item | Pneumatic Damper Actuator |
| Mounting Type | Fixed |
| Nominal Spring Range | 3 to 13 psi |
| Max. Air Pressure | 29 psi |
| Net Force Exerted @ 18 PSI | 3.3 lb |
| For Use With | Small Dampers and High Velocity Mixing Boxes |
| Application | Dampers |
| Spring Range Maximum | 13 psi |
| Spring Range Minimum | 3 psi |
| Operating Temperature - Maximum | 160 Degrees F |
| Force at 0 psi | 19.8 lbf |
| Fire/Smoke Application | UL Recognized Components for Fire/Smoke Applications |
| Air Connection Type | Barbed Hose |
| Control Pressure - Minimum | 3 psi |
| Installation Orientation | Versatile |
| Actuator Type | Linear |
| For Media | Air |
| Control Pressure - Maximum | 29 psi |
| Diaphragm Material | Neoprene |
| Force at 20 psi | 66 lbf |
| Includes Positioner | Positioner Not Included |
| Mounting Hardware Included | Ball Joints, Fixed External Mounting Bracket |
| Air Connection Gender | Male |
| Valve Action | Normally Open |
| Actuator Connection | Ball Joint Connector |
| Operating Temperature - Minimum | -28 Degrees F |
Description

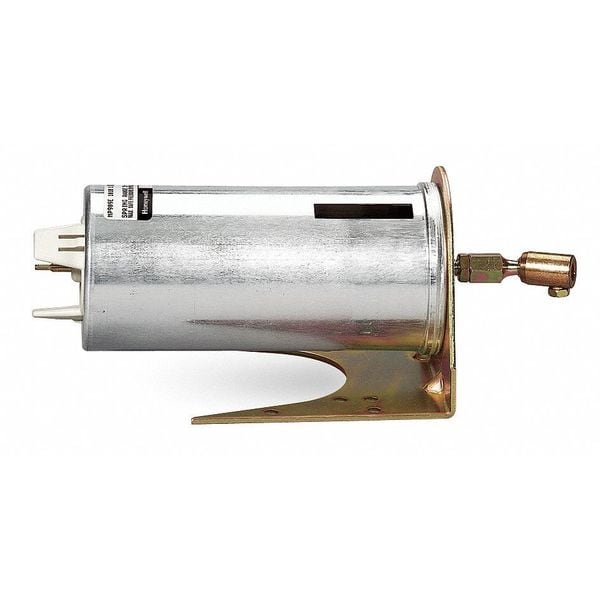

The Honeywell MP909E1018 is a fixed pneumatic damper actuator. This linear actuator uses compressed air to position dampers, converting air pressure into mechanical motion. It operates within a 3 to 13 psi range, has a maximum air pressure of 29 psi, and includes a fixed external mounting bracket and ball joints. It is used with small dampers and high velocity mixing boxes.
