- Mounting Hole Diameter: 0.98 in
- Voltage Rating: 600VAC/250VDC
- Body Material: Metal
- Operating Temp. Range: -25 Degrees to 160 Degrees F
- NEMA Rating: 1
- Amps: 15 Ind./2 Ind./0.5 Res./0.25 Res
Specifications
| Part Number | BZE6-2RQ |
| Brand | Honeywell |
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Plunger |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 15A at 600V |
| Actuator Length | 0.75" |
| Width | 1.00" |
| Height | 2.50" |
| Body Height - Limit Switch | 1.75 in |
| Body Width - Limit Switch | 3.04 in |
| Body Depth - Limit Switch | 1.0 in |
| Actuator Length - Limit Switch | 0.75 in |
| Depth | 3.04" |
| Body Width | 3.04 in |
| Body Depth | 1 in |
| Mounting Hole Diameter | 0.98 in |
| Body Height | 1.75 in |
| Overall Depth | 1 in |
| Overall Width | 3.04 in |
| Item | Limit Switch |
| DC Contact Rating - Limit Switch | 2A at 250V |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| Boot Sealed Actuator (Limit Switch) | No |
| Travel | Differential Travel 0.002 in, Maximum Pretravel 0.015 in, Minimum Over Travel 0.219 in |
| Mounting Hole Pattern - Limit Switch | 2 Hole Horizontal |
| Voltage Rating | 600VAC/250VDC |
| Number of Poles | 1 |
| Body Material | Metal |
| AC Contact Rating | 15 A @ 600 V |
| Mounting Hole - Limit Switch | (2) 0.22 in dia |
| Actuator Location | Top |
| Actuator Location (Limit Switch) | Top |
| Standards | CE, CSA, UL Listed |
| Operating Temp. Range | -25 Degrees to 160 Degrees F |
| Actuator Style (Limit Switch) | Plunger |
| Mounting Hole Spacing - Limit Switch | 1.00 in |
| Limit Switch Style | General Purpose Limit Switch |
| Actuator Style | Plunger |
| Basic Actuator Style (Limit Switch) | Plunger |
| Wiring Entry | 1/2 in NPT |
| Stem Thread - Limit Switch | No Stem |
| NEMA Rating | 1 |
| Series | BZE6 |
| Electrical Connection | Screw Terminals |
| DC Contact Rating | 2 A @ 250 V |
| IP Rating | IP66 |
| Movement | Release Force 0.25 lb min |
| Body Style (Limit Switch) | Miniature |
| Operating Force | 9 oz to 13 oz |
| Amps | 15 Ind./2 Ind./0.5 Res./0.25 Res |
| Boot Sealed Actuator - Limit Switch | No |
| Contact Form - Limit Switch | 1NC/1NO |
| Contact Form | 1NO/1NC |
| Differential Travel | 0.002 in |
| NEMA Enclosure Rating | 1 |
| Operating Temperature - Minimum | -25 Degrees F |
| Pretravel | 0.02 in |
| Overtravel | 0.22 in |
| Operating Force - Maximum | 13 ozf |
| Operating Force - Minimum | 9 ozf |
| Number of Mounting Holes | 2 |
| Operating Temperature - Maximum | 160 Degrees F |
| Mounting Style | Surface |
| Mounting Hole Horizontal Center to Center Distance | 25 mm |
| Body Configuration | Non Plug-In |
| Boot Sealed Actuator | No Boot Included |
Description

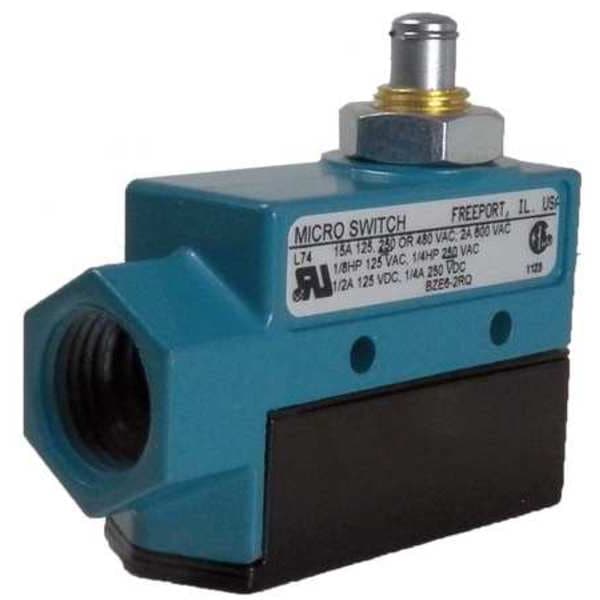

The Honeywell BZE6-2RQ is a limit switch with a top-mounted plunger actuator. This type of switch opens or closes an electrical circuit when the plunger is physically depressed. It is rated for 15A at 600VAC and 2A at 250VDC.
| Shipping | This item ships to USA |
