- Body Material: Brass
- Voltage: 24
- Connection Type/Size: Sweat 1/2
- Port Connection Size: 1/2 in
- Max. Water Temp. (Deg. F): 220 Degrees F
- Close-Off Pressure: 125 psi
Specifications
| Part Number | Z050C2-2 |
| Brand | Taco |
| Body Material | Brass |
| Voltage | 24 |
| For Use With | Closed Systems |
| Connection Type/Size | Sweat 1/2 |
| Width | 5 5/16 in |
| Depth | 2 3/8 in |
| Height | 4 1/4 in |
| Overall Width | 5 5/16 in |
| Port Connection Size | 1/2 in |
| Overall Depth | 2 3/8 in |
| Overall Length | 5 1/16 in |
| Item | Motorized Zone Valve |
| Max. Water Temp. (Deg. F) | 220 Degrees F |
| Electrical Connections | 2-Pin Screw Connectors for Power and End Switch |
| Coefficient of Volume | 4.9 |
| Includes | End Switch |
| Type | Two Way, Normally Closed, Closed System |
| Safe Working Water PSI | 300 psi |
| Close-Off Pressure | 125 psi |
| Allowable Pressure - Maximum | 300 psi |
| Valve Type | Ball |
| Gasket/Plug Material | EPDM |
| Spring Action | Non-Spring Return |
| Standards | NSF Certified |
| Body Pattern | Two-Way |
| Port Connection Gender | Female |
| Actuator Control Signal | On/Off |
| Actuator Housing Material | Polymer |
| Port Connection Type | Sweat |
| Distance Between Inlet and Outlet Port | 4 3/4 in |
| Fluid Temperature - Minimum | 20 Degrees F |
| Actuator Return Action | Double Acting |
| Installation Orientation | Versatile |
| For Media | Water, Water-Glycol Solution to 50% |
| Actuator Gears Material | Polymer |
| Stem Material | Brass |
| Includes Actuator | Actuator Included |
| Operating Temperature - Maximum | 135 Degrees F |
| Actuator Voltage | 24V AC |
| Actuator Type | Electric |
| Valve Action | Normally Closed |
| Application | Air Handlers, Baseboard Heaters, Convectors, Fan Coils, Heat Pumps, Radiators |
| Coefficient of Volume (Cv) | 4.9 |
| Frequency | 60 Hz |
| Fluid Temperature - Maximum | 220 Degrees F |
Description

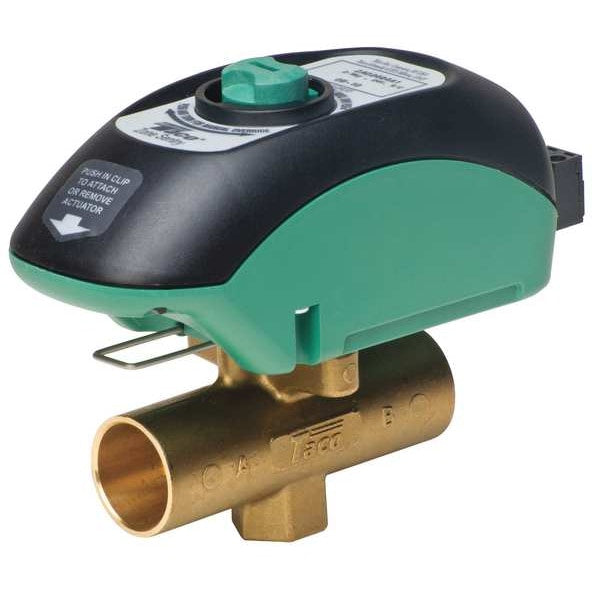

The Taco Z050C2-2 is a 24-volt motorized zone valve with a brass body and 1/2-inch sweat connections. This two-way, normally closed valve regulates water flow in closed hydronic systems, operating at a maximum water temperature of 220 degrees Fahrenheit. It features 2-pin screw connectors for power and end switch wiring.
