- Auxiliary Contact Form: 1NO/1NC
- Maximum Overload Relay Current Setting: 100 A
- Minimum Overload Relay Current Setting: 20 A
- Trip Class: 10/20
- NEMA Size: Not Applicable
- Number of Poles: 3
Specifications
| Part Number | XTOE100GGSS |
| Brand | Eaton |
| Item | Overload Relay |
| Auxiliary Contact Form | 1NO/1NC |
| Maximum Overload Relay Current Setting | 100 A |
| Minimum Overload Relay Current Setting | 20 A |
| Trip Class | 10/20 |
| NEMA Size | Not Applicable |
| Number of Poles | 3 |
| Number of Required Thermals | Not Applicable |
| Reset Type | Auto, Manual |
| Includes Thermal Units | Not Applicable |
| Mounting Style | Separately Mounted |
| Compatible with Series | XT Mini Contactors |
| Frame Size | G |
| Relay Style | IEC |
| Overload Protection Type | Electronic |
| Phase | Three |
| Standards | CE, CSA, UL Listed |
| UPC | 786685437682 |
Description

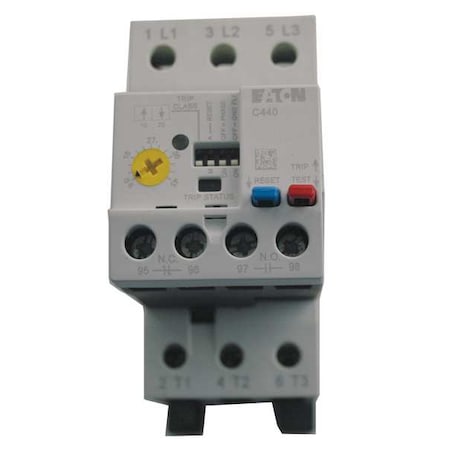

The Eaton XTOE100GGSS is an electronic overload relay with a 1NO/1NC auxiliary contact form. It has a minimum current setting of 20 A and a maximum current setting of 100 A, with a trip class of 10/20 and auto or manual reset. This three-pole, separately mounted relay is compatible with XT Mini Contactors and has a G frame size.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
