- Proximity Sensor Power Requirement: 12 to 24V DC
- Proximity Sensor Operating Frequency: 200 Hz
- Proximity Sensor Output Circuit Type: 2 Wire Analog
- Max. Detecting Distance: 25 mm
- Proximity Sensor Electrical Connection: PG13
- Screw: Terminal
Specifications
| Part Number | XS9C4A2A2G13 |
| Brand | Telemecanique Sensors |
| Item | Inductive Rectangular Proximity Sensor |
| Proximity Sensor Power Requirement | 12 to 24V DC |
| Proximity Sensor Operating Frequency | 200 Hz |
| Proximity Sensor Output Circuit Type | 2 Wire Analog |
| Max. Detecting Distance | 25 mm |
| Proximity Sensor Electrical Connection | PG13 |
| Screw | Terminal |
| Output Mode | 4 to 20mA |
| IP Rating | IP65, IP67, IP69K |
| Case Material | PBT |
| Length | 40 mm |
| Operating Temp. | Range -13 Degrees to 158 Degrees F |
| Max. Current Load | 200mA |
| Features | Inductive, Unshielded |
Description

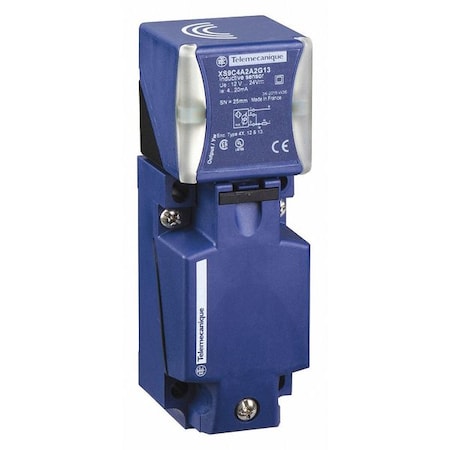

The Telemecanique Sensors XS9C4A2A2G13 is an inductive rectangular proximity sensor with a PBT case and a bare wire, 2-wire analog output circuit. It operates on 12 to 24V DC, has a maximum detecting distance of 25 mm, and provides a 4 to 20mA output mode. The unshielded sensor is rated IP65, IP67, and IP69K, with an operating temperature range of -13 to 158 degrees F.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
