- Angular Misalignment: 3 Degrees
- Coupling Size: WE20
- Horsepower @ 100 RPM: 3.7 hp
- Maximum Speed: 6,600 RPM
- Bore Type: Round Keyed
- For Bushing Size: Not Applicable
Specifications
| Part Number | WE20H118 |
| Brand | TB Woods |
| Item | Tire Coupling Hub |
| Angular Misalignment | 3 Degrees |
| Coupling Size | WE20 |
| Horsepower @ 100 RPM | 3.7 hp |
| Maximum Speed | 6,600 RPM |
| Bore Type | Round Keyed |
| For Bushing Size | Not Applicable |
| Maximum Torque | 2,300 in-lb |
| Keyway Depth | 1/8 in |
| Keyway Width | 1/4 in |
| Hub Diameter | 4.48 in |
| Parallel Misalignment | 0.09375 in |
| Bore Diameter | 1 1/8 in |
| Screw Thread Size | 1/4 In.-20 |
| Keyway | Set Screw Location Over |
| System of Measurement | Inch |
| Torsional Stiffness | 27,600 in-lb/rad |
| Length through Bore | 2 1/16 in |
| UPC | 698672127691 |
Description

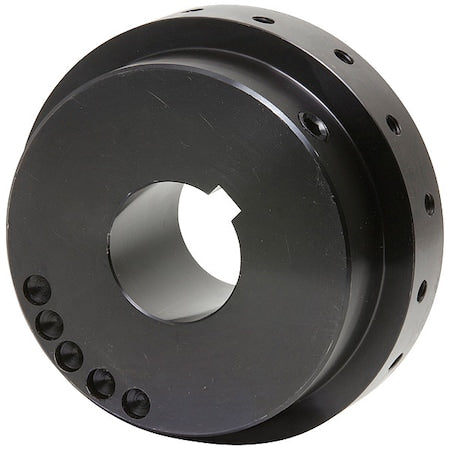

The TB Woods WE20H118 is a Dura-Flex tire coupling hub in size WE20 with a round keyed bore of 1-1/8 inches. It has a maximum speed of 6,600 RPM, a maximum torque of 2,300 in-lb, and a torsional stiffness of 27,600 in-lb/rad. The hub diameter is 4.48 inches and the length through the bore is 2-1/16 inches.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
