- Current Rating: 200 A
- Hazardous Location Specification Class: I
- Div: 1 and 2
- Group: A, B, C, D
- Horsepower Rating: Not Applicable
- Housing Color: Gray
Specifications
| Part Number | VP204513-S39 |
| Brand | Hubbell Killark |
| Item | Pin and Sleeve Plug |
| Current Rating | 200 A |
| Hazardous Location Specification Class | I |
| Div | 1 and 2 |
| Group | A, B, C, D |
| Horsepower Rating | Not Applicable |
| Housing Color | Gray |
| IP Rating | Not Rated |
| Number of Poles | 4 |
| Number of Wires | 4 |
| Phase | Three |
| Voltage Rating | 250V DC, 600V AC |
| Wire Connection Type Screw | Terminals |
| Cap Type | Not Applicable |
| Connection Orientation | Straight |
| Face Diameter | 4.063 in |
| Grounding | Grounded |
| Grounding Style Style | 1 |
| Housing Material | Copper-Free Aluminum |
| UPC | 783936832937 |
Description

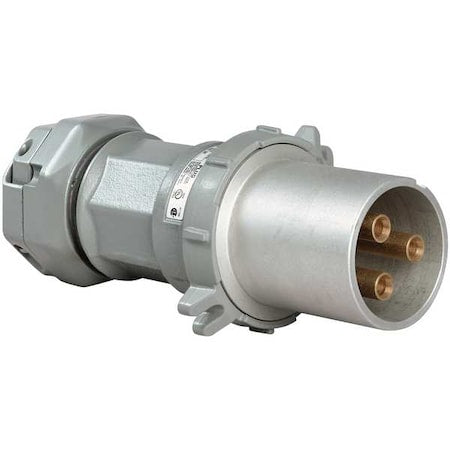

The Hubbell Killark VP204513-S39 is a pin and sleeve plug rated for 200 A with 4 poles and 4 wires. It operates at 600V AC or 250V DC and is suitable for three-phase systems. This straight plug has a gray copper-free aluminum housing, screw terminals, a 4.063 in face diameter, and is grounded for Class I, Division 1 and 2, Groups A, B, C, D hazardous locations.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
