- Three: Phase
- Motor Design: Three-Phase
- HP: 2
- Nameplate RPM: 1,170
- No. of Speeds: 1
- Voltage: 230/460V AC
Specifications
| Part Number | UN2T3BC |
| Brand | U.S. Motors |
| Item | Vector Motor |
| Three | Phase |
| Motor Design | Three-Phase |
| HP | 2 |
| Nameplate RPM | 1,170 |
| No. of Speeds | 1 |
| Voltage | 230/460V AC |
| Full Load Amps | 6.2/3.1 A |
| Frame | 184 |
| Torque | 386 ft-lb |
| Max. Speed | 1,170 RPM |
| Speed Range | 5,000:1 |
| Hz | 60 Hz |
| Max. Operating Frequency | 60 Hz |
| Motor Service Factor | 1 |
| Motor Thermal Protection | T-Stat |
| Ins. Class | F |
| Max. Ambient Temp. | 104 Degrees F |
| Duty Cycle | Continuous |
| NEMA Design | A |
| Motor Shaft Rotation | CW/CCW |
| Motor Enclosure Design Totally Enclosed | Non-Ventilated |
| UPC | 786382080273 |
Description

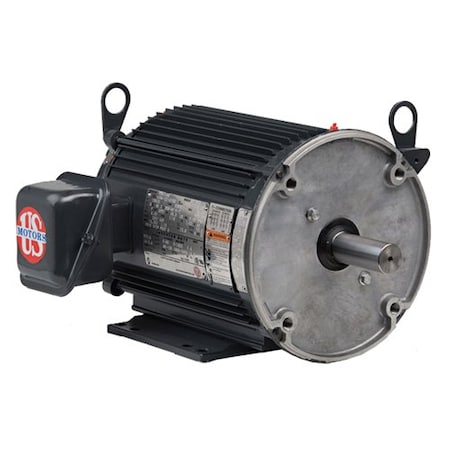

The U.S. Motors UN2T3BC is a three-phase vector motor rated at 2 HP with a 184 frame. It operates on 230/460V AC at 60 Hz, with a nameplate speed of 1,170 RPM and a speed range of 5,000:1. The motor has a torque of 386 ft-lb, full load amps of 6.2/3.1 A, Class F insulation, and a totally enclosed non-ventilated enclosure.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
