- Totally Enclosed Fan: Cooled Motor Enclosure Design
- HP: 1/2
- Nameplate RPM: 1,765
- Frame: 56C
- Voltage: 575V AC
- Hz: 60 Hz
Specifications
| Part Number | U12P2GCR |
| Brand | U.S. Motors |
| Item | General Purpose Motor |
| Totally Enclosed Fan | Cooled Motor Enclosure Design |
| HP | 1/2 |
| Nameplate RPM | 1,765 |
| Frame | 56C |
| Voltage | 575V AC |
| Hz | 60 Hz |
| Three | Phase |
| Full Load Amps | 0.8 A |
| Motor Mounting Type | C-Face |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Service Factor | 1.25 |
| Ball Motor | Bearings |
| Motor Frame Material | Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Nominal Efficiency | 78.5 Percent |
| CSA | Certified |
| UL | Recognized |
| Features | Three-Phase, 1,701-1,800 |
| UPC | 786382129125 |
Description

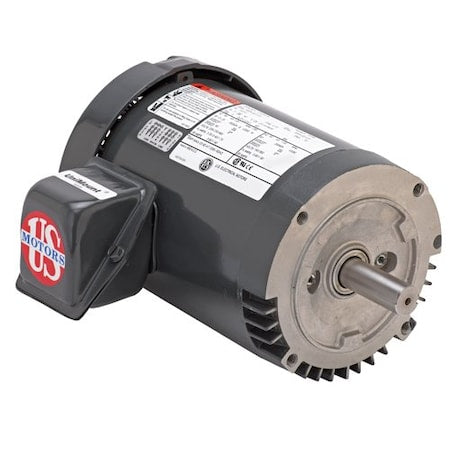

The U.S. Motors U12P2GCR is a general purpose motor with a totally enclosed fan cooled enclosure design. It is a three-phase unit rated at 1/2 HP, 575V AC, 60 Hz, with a nameplate RPM of 1,765 and a 56C frame. This motor features a C-face mounting type, steel frame, ball bearings, and a nominal efficiency of 78.5 percent.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
