- Heat Dissipation Capacity for Water: 240,000 BtuH
- Heat Dissipation Capacity for Oil: 12,700 BtuH
- Total Surface Area: 2.4 sq ft
- Shell Outside Diameter: 3 1/8 in
- Tube Length: 10 3/8 in
- Shell Material: Brass
Specifications
| Part Number | SN503003008005 |
| Brand | Standard Xchange |
| Item | Heat Exchanger |
| Heat Dissipation Capacity for Water | 240,000 BtuH |
| Heat Dissipation Capacity for Oil | 12,700 BtuH |
| Total Surface Area | 2.4 sq ft |
| Shell Outside Diameter | 3 1/8 in |
| Tube Length | 10 3/8 in |
| Shell Material | Brass |
| Tube Material | Copper |
| Number of Passes | 4 |
| Shell Maximum Pressure Rating | 300 psig |
| Shell Maximum Operating Temperature | 300 Degrees F |
| Tube Maximum Pressure Rating | 150 psig |
| Tube Maximum Operating Temperature | 300 Degrees F |
| Fluid Compatibility | Glycol |
| Features | Oil, Steam, Water |
Description

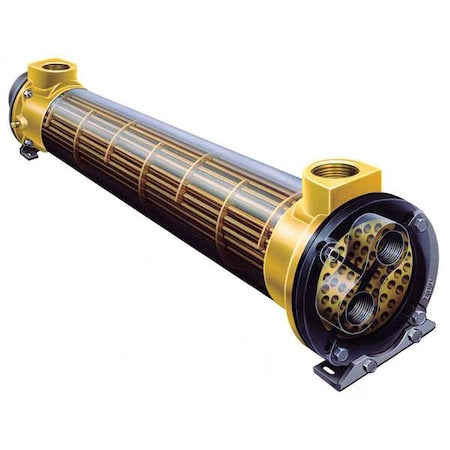

The SN503003008005 Standard Xchange is a heat exchanger with a heat dissipation capacity of 240,000 BtuH for water and 12,700 BtuH for oil. It has a brass shell with a 3 1/8 in outside diameter, copper tubes with a 10 3/8 in length, and a total surface area of 2.4 sq ft. This 4-pass unit is rated for a shell maximum pressure of 300 psig and tube maximum pressure of 150 psig, with maximum operating temperatures of 300 degrees F for both.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
