- Number of Output Shafts: 1
- Motor Type: 3-Phase
- Motor Enclosure Totally Enclosed: Fan-Cooled
- Nameplate Speed: 17 RPM
- Maximum Torque: 1,770 in-lb
- Overhung Load Capacity: 1,530 lb
Specifications
| Part Number | SK9012.1-71L/4-97.36-A |
| Brand | Nord |
| Item | AC Gearmotor |
| Number of Output Shafts | 1 |
| Motor Type | 3-Phase |
| Motor Enclosure Totally Enclosed | Fan-Cooled |
| Nameplate Speed | 17 RPM |
| Maximum Torque | 1,770 in-lb |
| Overhung Load Capacity | 1,530 lb |
| Rotation | CW/CCW |
| Output Shaft Height | 4.41 in |
| Mounting Orientation | Any Angle |
| Operating Voltage | 230/460V AC |
| Gear Ratio | 97:1 |
| Brake Type | None |
| Output Location | Left Hand |
| Shaft Orientation | Right Angle |
| Seal Material | Viton |
| Shaft Material Grade | AISI 1045/AISI 4140 |
| Application | Inverter Duty |
Description

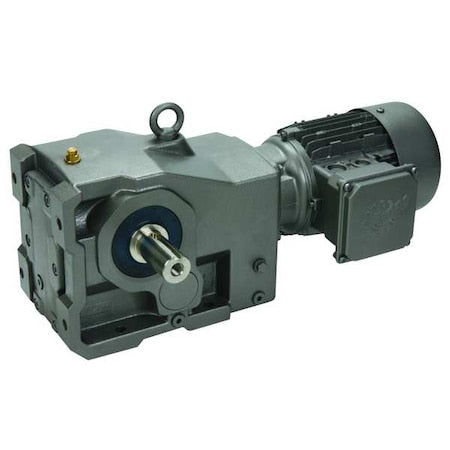

The Nord SK9012.1-71L/4-97.36-A is a 3-phase AC gearmotor with a nameplate speed of 17 RPM and a maximum torque of 1,770 in-lb. It has a right-angle output shaft on the left hand side, a 97:1 gear ratio, and a totally enclosed fan-cooled motor enclosure. The unit operates at 230/460V AC, supports CW/CCW rotation, and is rated for inverter duty with a Viton seal material.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
