- Input Voltage: 380 to 480V AC
- Output Voltage: 24 to 28V DC
- Power Rating: 960W
- Output Amps: 40.0
- Mounting DIN: Rail
- Case Material: Metal Case
Specifications
| Part Number | QT40.241 |
| Brand | Puls |
| Item | DC Power Supply |
| Input Voltage | 380 to 480V AC |
| Output Voltage | 24 to 28V DC |
| Power Rating | 960W |
| Output Amps | 40.0 |
| Mounting DIN | Rail |
| Case Material | Metal Case |
| Height | 124 mm |
| Width | 110 mm |
| Depth | 127 mm |
| Series | Q |
| Hz | 50 to 60 Hz |
| Phase - Electrical | Three |
| Peak Amps | 60 |
| IP Rating | IP20 |
| Output Noise | 100mV |
| Hold Up Time | 25 msec |
| Status Indicator | DC OK Signal |
| Features High | Efficiency and Long Lifetime |
| Operating Temp. | Range -25 Degrees to 70 Degrees C |
| Features | Switching |
| UPC | 875404001461 |
Description

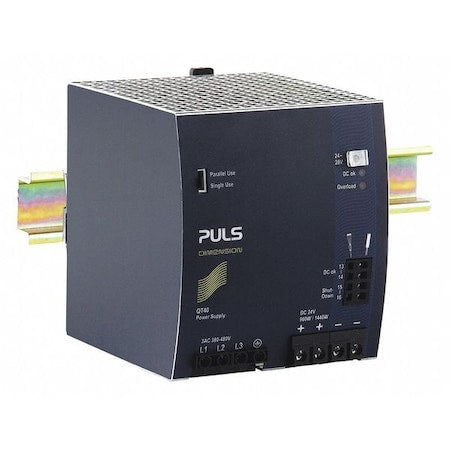

The Puls QT40.241 is a DC power supply for DIN rail mounting in a metal case. It accepts a three-phase input of 380 to 480V AC at 50 to 60 Hz and provides an output of 24 to 28V DC with a 40 A rating and 960 W power. The unit measures 124 mm high, 110 mm wide, and 127 mm deep, with an operating temperature range of -25 to 70 degrees C.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
