- Power Required: 18 to 30V DC
- Range: 0 to1450 psi
- Compatible With: Air and Liquids
- Circuit Type: PNP/NPN
- Output Current: 150mA
- Degrees C: 200mA @ 60
Specifications
| Part Number | PN7292 |
| Brand | IFM |
| Item | Digital Pressure Sensor |
| Power Required | 18 to 30V DC |
| Range | 0 to1450 psi |
| Compatible With | Air and Liquids |
| Circuit Type | PNP/NPN |
| Output Current | 150mA |
| Degrees C | 200mA @ 60 |
| Degrees C | 250mA @ 40 |
| Contact Form | SPST |
| On | Set Point 10 to 1450 psi |
| Off Set Point | 5 to 1445 psi |
| Burst Pressure | 9,400 psi |
| Process Connection | 1/4 in NPT |
| IP Rating | IP65, IP67 |
| Housing Material | Stainless Steel |
| Wetted Materials | Ceramic, Stainless Steel |
| Electrical Connection | 4 Pin M12 Connector |
Description

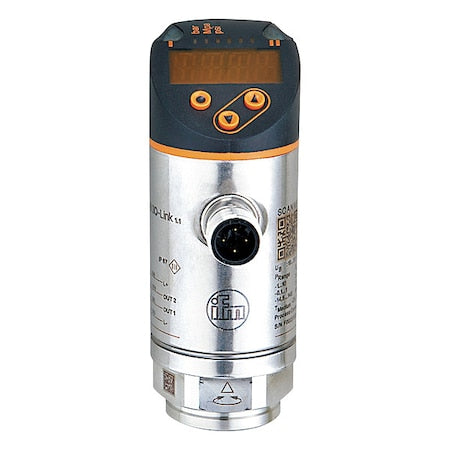

The IFM PN7292 is a digital pressure sensor with a measuring range of 0 to 1450 psi and a burst pressure of 9,400 psi. It operates on 18 to 30V DC and is compatible with air and liquids. The sensor features a 1/4 in NPT process connection, a stainless steel housing, and a 4-pin M12 electrical connector.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
