- Amps: 15 A
- AC Voltage Rating: 600V AC
- Max. AIR Rating: 65kA at 480V AC
- For Use With: Current-Limiting Breakers
- DC: Breakers 125 to 750 V DC
- Engine: Generator Breakers 15 to 1200 Amperes
Specifications
| Part Number | PDG23M0015TFFL |
| Brand | Eaton |
| Item | Molded Case Circuit Breaker |
| Amps | 15 A |
| AC Voltage Rating | 600V AC |
| Max. AIR Rating | 65kA at 480V AC |
| For Use With | Current-Limiting Breakers |
| DC | Breakers 125 to 750 V DC |
| Engine | Generator Breakers 15 to 1200 Amperes |
| Mining Breakers upto | 1100 V AC |
| Breakers | Navy |
| High Amp Trip Setting | 15 A |
| Low Amp Trip Setting | 15 A |
| Circuit Breaker Type | Standard |
| Number of Poles | 3 |
| Terminal Connection Load Side | Lug |
| Trip Type | Thermal Magnetic |
| Phase | Three |
| Instantaneous Trip | Fixed |
| Phase Connection | ABC |
| UPC | 786679859353 |
Description

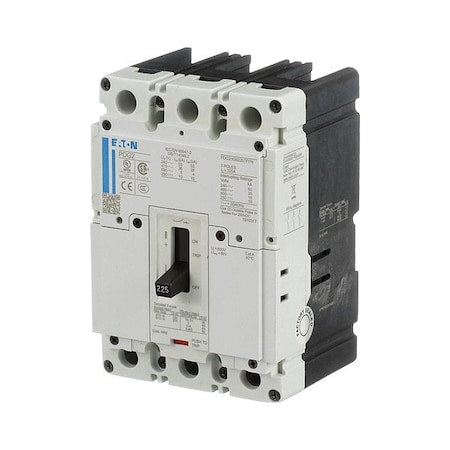

The Eaton PDG23M0015TFFL is a molded case circuit breaker rated for 600V AC and 15 A. It is a three-pole, three-phase unit with a standard thermal magnetic trip type and a fixed instantaneous trip. The breaker has a maximum AIR rating of 65kA at 480V AC and a lug terminal connection on the load side.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
