- Main: Lug
- Circuit Breaker Series: EDB
- Amps: 125 A
- Short Circuit Current Rating: 100000 RMS Symmetrical
- Number of Spaces: 18
- Voltage: 277/480YV AC
Specifications
| Part Number | NF418L1 |
| Brand | Square D |
| Item | Panelboard Interior |
| Main | Lug |
| Circuit Breaker Series | EDB |
| Amps | 125 A |
| Short Circuit Current Rating | 100000 RMS Symmetrical |
| Number of Spaces | 18 |
| Voltage | 277/480YV AC |
| Phase | Three |
| Bus Material | Aluminum |
| Recommended Enclosure | 1D687 for Main Lug |
| Breaker | 6B429 for Main |
| Circuit Breaker Type | Bolt-On |
| For Use With | NF Circuit Breakers |
| Height | 21 in |
| Depth | 5 3/4 in |
| Width | 10 7/16 in |
| Recommended Flush Cover | 3TX77 for Main Lug |
| Breaker | 3TX81 for Main |
| Features | Convertible, EDG, EDJ |
| UPC | 785901871286 |
Description

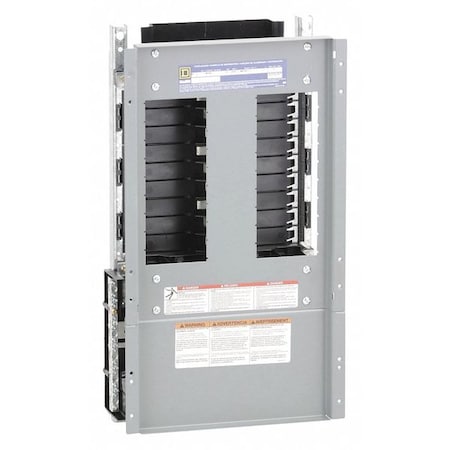

The Square D NF418L1 is a panelboard interior with 18 spaces, rated for 125 A at 277/480YV AC three-phase. It has an aluminum bus, a short circuit current rating of 100000 RMS symmetrical, and a convertible main lug configuration for use with NF circuit breakers. This bolt-on unit is for EDB, EDG, and EDJ series breakers and measures 21 in high, 10 7/16 in wide, and 5 3/4 in deep.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
