- Bore Diameter: 3 7/8 in
- Maximum Operating Pressure: 0.6 MPa
- Inlet Size: 1/8 in
- Air Inlet Type: NPT
- Maximum Output Torque: 20.3 N-m
- Cushion Type: Shock Absorber
Specifications
| Part Number | MSQB100R-XN |
| Brand | SMC |
| Item | Rotary Table |
| Bore Diameter | 3 7/8 in |
| Maximum Operating Pressure | 0.6 MPa |
| Inlet Size | 1/8 in |
| Air Inlet Type | NPT |
| Maximum Output Torque | 20.3 N-m |
| Cushion Type | Shock Absorber |
| Table Material Finish | Anodized |
| Body Material Finish | Anodized |
| Minimum Rotation Angle | 62 Degrees |
| Bearing | Retainer Material Aluminum Alloy |
| Body Material Aluminum | Alloy |
| Allowable Kinetic Energy | 1.6 J |
| Table Size | 10 |
| Maximum Rotation Angle | 190 Degrees |
| Overall Length | 8 3/4 in |
| Maximum Operating Temperature | 140 Degrees F |
| UPC | 190735677704 |
Description

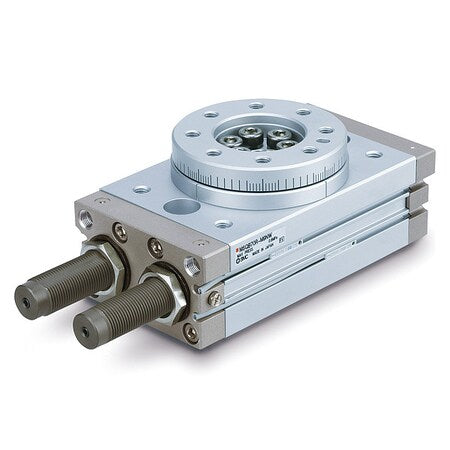

The SMC MSQB100R-XN is a rotary table with a 3 7/8 in bore diameter and a 1/8 in NPT air inlet. It has a maximum rotation angle of 190 degrees, a minimum rotation angle of 62 degrees, and a maximum output torque of 20.3 N-m. The table and body have an anodized finish, and the allowable kinetic energy is 1.6 J.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
