- Input Voltage: 100 to 240V AC, 110 to 300V DC
- Output Voltage: +/-12/15V DC
- Power Rating: 36W
- Output Amps: 1.4-2.8
- Mounting DIN: Rail
- Case Material: Plastic Case
Specifications
| Part Number | ML30.106 |
| Brand | Puls |
| Item | DC Power Supply |
| Input Voltage | 100 to 240V AC, 110 to 300V DC |
| Output Voltage | +/-12/15V DC |
| Power Rating | 36W |
| Output Amps | 1.4-2.8 |
| Mounting DIN | Rail |
| Case Material | Plastic Case |
| Height | 75 mm |
| Width | 45 mm |
| Depth | 91 mm |
| Series | MiniLine |
| Hz | 50 to 60 Hz |
| Phase - Electrical | Single |
| IP Rating | IP20 |
| Output Noise | 50mV |
| Hold Up Time | 54 msec |
| Status Indicator | Green LED |
| Features High | Efficiency and Long Lifetime |
| Operating Temp. | Range -10 Degrees to 70 Degrees C |
| Standards | NEC Class 2 Listed |
| Features | Switching |
| UPC | 875404000068 |
Description

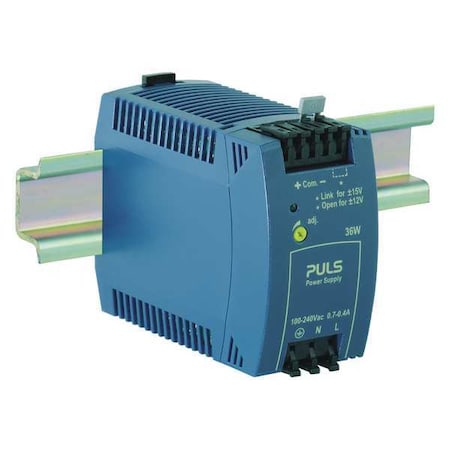

The Puls ML30.106 is a DC power supply from the MiniLine series with a plastic case and DIN rail mounting. It accepts a 100 to 240V AC or 110 to 300V DC input and provides a +/-12/15V DC output with a 36W power rating. The unit measures 75 mm high, 45 mm wide, and 91 mm deep, and includes a green LED status indicator.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
