- Air Connection Gender: Female
- Air Connection Size: 1/8 in
- Air Connection Type: NPT
- Application Air: Conditioning Systems
- Systems: Heating and Ventilating
- Diaphragm Material: Neoprene
Specifications
| Part Number | MK-3141-0-2 |
| Brand | Schneider Electric |
| Item | Pneumatic Damper Actuator |
| Air Connection Gender | Female |
| Air Connection Size | 1/8 in |
| Air Connection Type | NPT |
| Application Air | Conditioning Systems |
| Systems | Heating and Ventilating |
| Diaphragm Material | Neoprene |
| For Media | Air |
| Manufacturer Series | MK-3XXX |
| Mounting Hardware Included | Connector, Mounting Bracket |
| Rod | Push |
| Operating Temperature - Maximum | 160 Degrees F |
| Operating | Temperature - Minimum -20 Degrees F |
| Overall Depth | 5 1/2 in |
| Overall Length | 12 in |
| Overall Width | 5 7/8 in |
Description

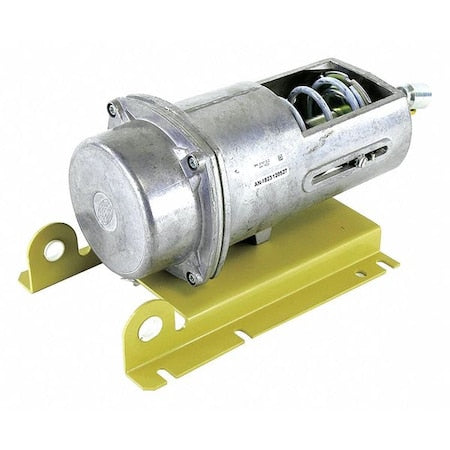

The Schneider Electric MK-3141-0-2 is a pneumatic damper actuator for heating, ventilating, and air conditioning systems. It operates with a 3 to 13 psig signal and provides a 2" or 4" stroke with a push rod. The unit has a 1/8 in female NPT air connection, a neoprene diaphragm, and an operating temperature range of -20 to 160 degrees F.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
