- Current Rating: 100 A
- Flange Type: Flanged
- Grounding Style: IEC
- Hazardous Location Specification: Not Rated
- IP Rating: IP66, IP67, IP68, IP69K
- NEMA Enclosure Rating: 12, 3R, 4X
Specifications
| Part Number | M5100R9WLEV |
| Brand | Leviton |
| Item | Pin and Sleeve Receptacle |
| Current Rating | 100 A |
| Flange Type | Flanged |
| Grounding Style | IEC |
| Hazardous Location Specification | Not Rated |
| IP Rating | IP66, IP67, IP68, IP69K |
| NEMA Enclosure Rating | 12, 3R, 4X |
| Number of Gangs | 1 |
| Number of Poles | 4 |
| Number of Wires | 5 |
| Phase | Three |
| Shrouded | Yes |
| Voltage Rating | 120/208V AC |
| Horsepower Rating | 25 hp |
| Housing Color | Gray |
| Housing Material | Nylon |
| Market | Industrial |
| Maximum Wire Size | 3/0 AWG |
| Minimum Wire Size | 3 AWG |
| Power Indicating Light | No |
| Features | 6P |
Description

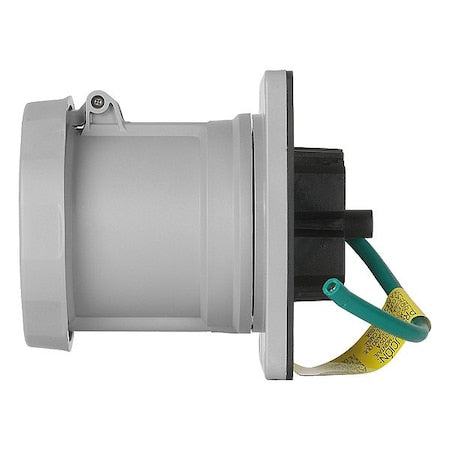

The Leviton M5100R9WLEV is a flanged pin and sleeve receptacle rated for 100 A and 120/208V AC. This gray nylon unit has 4 poles, 5 wires, three-phase operation, and an IP66, IP67, IP68, IP69K rating. It accepts wire sizes from 3 AWG to 3/0 AWG and has a NEMA enclosure rating of 12, 3R, 4X.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
