- Valve Application: Damper and Valve
- Signal Type: On/Off
- Rated Torque: 60 in-lb
- Input Voltage: 120V AC
- Contact Form: SPDT
- Electrical Connection Type: Hardwired
Specifications
| Part Number | M4185B1009/U |
| Brand | Honeywell |
| Item | Rotary Actuator |
| Valve Application | Damper and Valve |
| Signal Type | On/Off |
| Rated Torque | 60 in-lb |
| Input Voltage | 120V AC |
| Contact Form | SPDT |
| Electrical Connection Type | Hardwired |
| NEMA Rating | 3 |
| Spring Return | Spring Return |
| Time to Close | 60 sec |
| Shaft Type | Double-Ended |
| Shaft Rotation | CW |
| Stroke Degree | 160 Degrees |
| Mounting Type Foot | Mount |
| Maximum Operating Temperature | 150 Degrees F |
| Minimum Operating Temperature -40 Degrees | F |
| Overall Width | 5 1/2 in |
| Application | Dampers, Valves |
Description

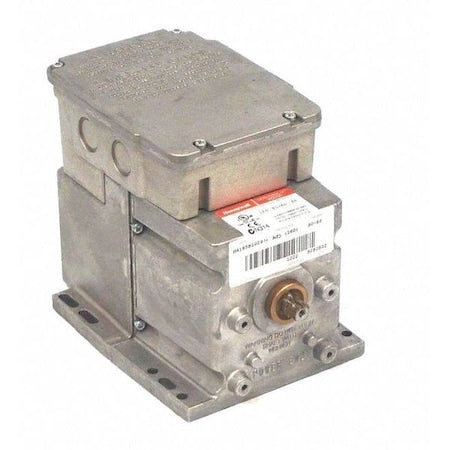

The Honeywell M4185B1009/U is a rotary actuator for damper and valve applications. It provides a rated torque of 60 in-lb with 120V AC input and an on/off signal type. This spring-return unit has a double-ended shaft with clockwise rotation, a 160-degree stroke, and a 60-second time to close.
