- Shaft Orientation: Parallel
- Motor Enclosure Totally Enclosed: Nonventilated
- Operating Voltage: 90V DC
- Motor Type: Permanent Magnet DC
- Nameplate Speed: 83 RPM
- Maximum Torque: 155 in-lb
Specifications
| Part Number | M1135220.00 |
| Brand | DAYTON |
| Item | DC Gearmotor |
| Shaft Orientation | Parallel |
| Motor Enclosure Totally Enclosed | Nonventilated |
| Operating Voltage | 90V DC |
| Motor Type | Permanent Magnet DC |
| Nameplate Speed | 83 RPM |
| Maximum Torque | 155 in-lb |
| Overhung Load Capacity | 267 lb |
| Rotation | CW/CCW |
| Output Shaft Height | 4 in |
| Mounting Orientation | Any Angle |
| Gear Ratio | 29:1 |
| Input Horsepower | 1/4 hp |
| Output Shaft Diameter | 3/4 in |
| Bearing Type | Ball on Motor |
| Heavy Duty | Ball |
| Needle | Roller and Thrust Balls on Case |
| UPC | 190735369210 |
Description

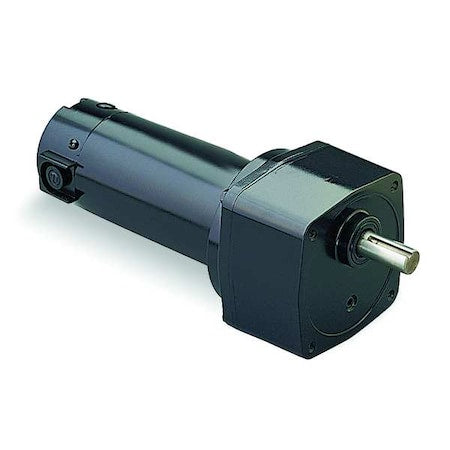

The DAYTON M1135220.00 is a DC gearmotor with a parallel shaft orientation and a totally enclosed, nonventilated motor enclosure. It operates at 90V DC as a permanent magnet motor with a nameplate speed of 83 RPM, a maximum torque of 155 in-lb, and a 29:1 gear ratio. The unit has a 3/4 in output shaft diameter, 267 lb overhung load capacity, and can be mounted at any angle.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
