- Shaft Orientation: Parallel
- Motor Enclosure Totally Enclosed: Nonventilated
- Operating Voltage: 180V DC
- Motor Type: Permanent Magnet DC
- Nameplate Speed: 170 RPM
- Maximum Torque: 43 in-lb
Specifications
| Part Number | M1125041.00 |
| Brand | Leeson |
| Item | Parallel Shaft Gearmotors |
| Shaft Orientation | Parallel |
| Motor Enclosure Totally Enclosed | Nonventilated |
| Operating Voltage | 180V DC |
| Motor Type | Permanent Magnet DC |
| Nameplate Speed | 170 RPM |
| Maximum Torque | 43 in-lb |
| Starting Torque | 43 in-lb |
| Overhung Load Capacity | 196 lb |
| Rotation | CW/CCW |
| Output Shaft Height | 3.5 in |
| Mounting Orientation | Horizontal |
| Down | Vertical with Shaft |
| Gear Ratio | 10:1 |
| Input Horsepower | 1/8 hp |
| Motor Insulation Class | F |
| Efficiency | 64.6 Percent |
| Output Shaft Diameter | 5/8 in |
| UPC | 691720091074 |
Description

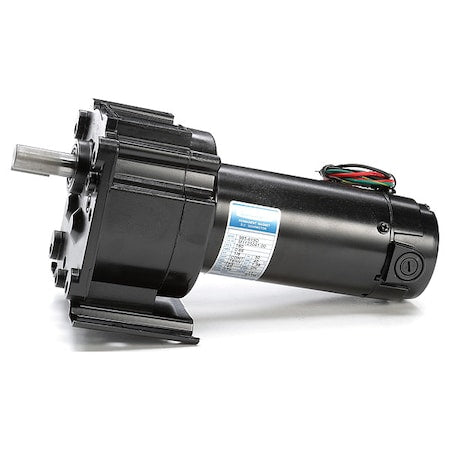

The Leeson M1125041.00 is a parallel shaft gearmotor with a permanent magnet DC motor operating at 180V DC. It has a nameplate speed of 170 RPM, a 10:1 gear ratio, and a maximum torque of 43 in-lb. The totally enclosed nonventilated motor has an input of 1/8 hp, a 5/8 in output shaft diameter, and supports horizontal or vertical mounting with the shaft down.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
