- Circuit Design: Single or Double Acting
- Power: Source - Power Units AC Power
- HP: 2 hp
- RPM: 1,800 RPM
- AC: 115/230V
- Hertz: 50/60 Hz
Specifications
| Part Number | M-4505-0151 |
| Brand | Monarch |
| Item | Hydraulic Power Unit |
| Circuit Design | Single or Double Acting |
| Power | Source - Power Units AC Power |
| HP | 2 hp |
| RPM | 1,800 RPM |
| AC | 115/230V |
| Hertz | 50/60 Hz |
| Number of Phases | 1 |
| Full Load Amps | 19.0/9.5 A |
| Pump | Stage 1 |
| Max. Pressure | 2,000 psi |
| Nominal Flow | 1.4 gpm |
| Reservoir Capacity | 5 gal |
| Overall Length | 14 in |
| Overall Width | 12 1/4 in |
| Overall Height | 27 in |
Description

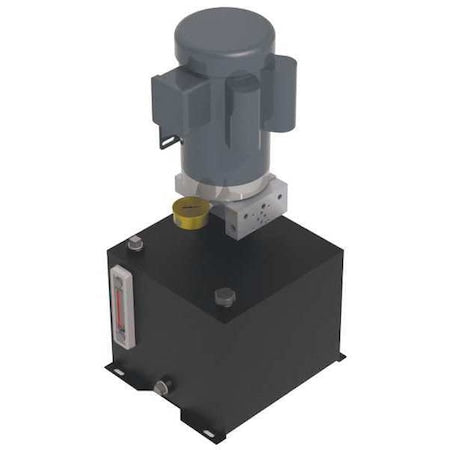

The Monarch M-4505-0151 is a hydraulic power unit with a single-stage pump and a circuit design for single or double acting operation. It runs on 115/230V AC single-phase power at 50/60 Hz, drawing 19.0/9.5 full load amps. The 2 hp motor operates at 1,800 RPM, delivering a nominal flow of 1.4 gpm and a maximum pressure of 2,000 psi. It has a 5-gallon reservoir and measures 14 inches long, 12 1/4 inches wide, and 27 inches high.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
