- Auxiliary Contact Form: 1NO/1NC
- Maximum Overload Relay Current Setting: 150 A
- Minimum Overload Relay Current Setting: 90 A
- Trip Class: 10
- Maximum Voltage Rating: 690V AC
- NEMA Size: Not Applicable
Specifications
| Part Number | LR9D5369 |
| Brand | Schneider Electric |
| Item | Overload Relay |
| Auxiliary Contact Form | 1NO/1NC |
| Maximum Overload Relay Current Setting | 150 A |
| Minimum Overload Relay Current Setting | 90 A |
| Trip Class | 10 |
| Maximum Voltage Rating | 690V AC |
| NEMA Size | Not Applicable |
| Number of Poles | 3 |
| Reset Type | Auto, Manual |
| Mounting Style | Direct To Contactor |
| Terminal Connection Type Screw | Clamp Terminals |
| Compatible with Series | TeSys Deca |
| Relay Style | IEC |
| Overload Protection Type | Thermal |
| UPC | 785901787938 |
Description

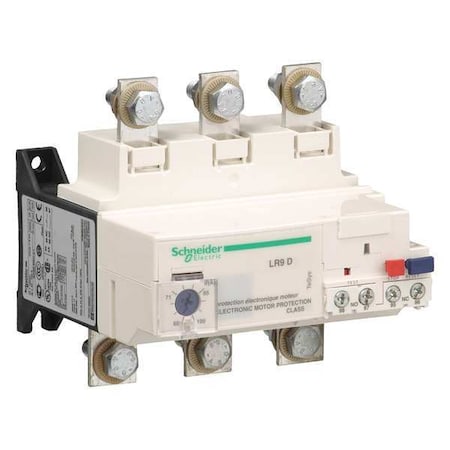

The Schneider Electric LR9D5369 is a thermal overload relay with a 1NO/1NC auxiliary contact form and three poles. It has an adjustable current setting range from 90 A to 150 A, a trip class of 10, and a maximum voltage rating of 690V AC. This IEC-style relay supports auto or manual reset and mounts directly to a contactor using screw clamp terminals.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
