- Fits Fuse Type Class: H
- Class: K5
- Fuse UL Class: H
- A: 101 to 200
- Number of Poles: 3
- AC: 250V
Specifications
| Part Number | HM25200-3CR |
| Brand | Eaton Bussmann |
| Item | Fuse Block |
| Fits Fuse Type Class | H |
| Class | K5 |
| Fuse UL Class | H |
| A | 101 to 200 |
| Number of Poles | 3 |
| AC | 250V |
| For Fuse Size | 7 1/8 in L x 1 9/16 in dia |
| Compatible Fuse Series | NLN |
| Series | HM |
| Fuse Block Design | Open |
| Wire Range | 6 AWG to 250 MCM |
| Mounting Style | Bolt-Down |
| Body Material | Thermoplastic |
| Connector Type Box | Lug |
| Height | 3.8 in |
| Width | 8 in |
| Length | 11.2 in |
| Spring Reinforced Clip | Yes |
| Standards | CSA Certified, UL Listed |
| Features | K5, NON, OT, REN, RF, RLN, Non-Indicating, Non-Rejection |
| UPC | 051712387286 |
Description

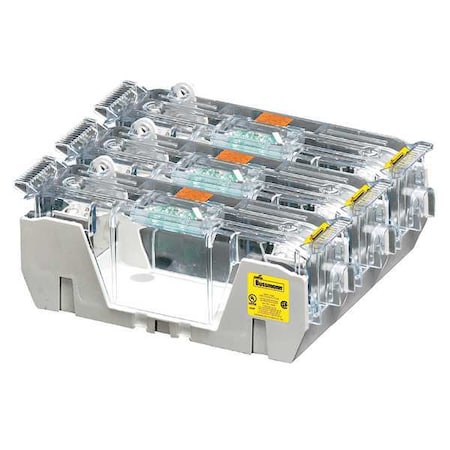

The Eaton Bussmann HM25200-3CR is an open fuse block with three poles, a 250V AC/DC voltage rating, and an amp range of 110 to 200A. It accepts Class H fuses measuring 7 1/8 in long by 1 9/16 in diameter and has a box lug connector. The block features a thermoplastic body, bolt-down mounting, and a wire range of 6 AWG to 250 MCM.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
