- Amps: 100 A
- AC Voltage Rating: 600V AC
- Max. AIR Rating: 65kA at 240V AC
- Series: HG
- High Amp Trip Setting: 60 A
- Low Amp Trip Setting: 100 A
Specifications
| Part Number | HGL36100U31X |
| Brand | Square D |
| Item | Molded Case Circuit Breaker |
| Amps | 100 A |
| AC Voltage Rating | 600V AC |
| Max. AIR Rating | 65kA at 240V AC |
| Series | HG |
| High Amp Trip Setting | 60 A |
| Low Amp Trip Setting | 100 A |
| Circuit Breaker Type | Micrologic Standard W LI Functionality |
| Number of Poles | 3 |
| DC Voltage Rating | 250V DC |
| Terminal Connection Box | Lug |
| Trip Type | Thermal Magnetic |
| Phase | Three |
| Instantaneous Trip | Adjustable |
| Phase Connection | ABC |
| Frame Size | 150A/HG |
| Circuit Breaker Mounting Style Free | Standing |
| Height | 6.4 in |
| Width | 4.1 in |
| UPC | 785901229049 |
Description

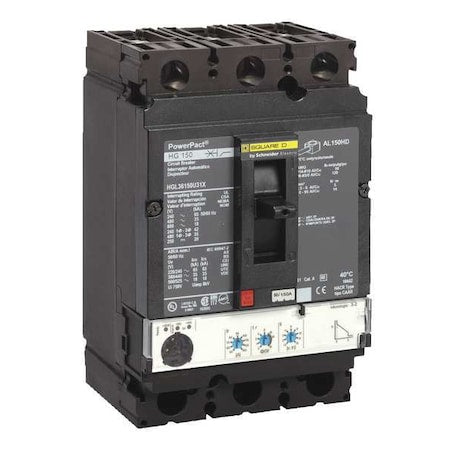

The Square D HGL36100U31X is a molded case circuit breaker from the HG series with three poles and a 100 A rating. It is rated for 600V AC and 250V DC, with a maximum AIR rating of 65kA at 240V AC. This thermal magnetic breaker has adjustable instantaneous trip, Micrologic Standard W LI functionality, and a 150A/HG frame size.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
