- Hydraulic Flow Rate: 2.4 gpm @ 1000 psi
- Inlet Connection Size: 3/4 In.-16 SAE 8
- Maximum Inlet Pressure: 3,000 psi
- Outlet Connection Size: 3/4 In.-16 SAE 8
- Overall Height: 10.75 in
- Overall Length: 12.25 in
Specifications
| Part Number | HF-3500 |
| Brand | Vibco |
| Item | Hydraulic Vibrator |
| Hydraulic Flow Rate | 2.4 gpm @ 1000 psi |
| Inlet Connection Size | 3/4 In.-16 SAE 8 |
| Maximum Inlet Pressure | 3,000 psi |
| Outlet Connection Size | 3/4 In.-16 SAE 8 |
| Overall Height | 10.75 in |
| Overall Length | 12.25 in |
| Overall Width | 12.5 in |
| Sound Level | 80 dBA |
| Mount Type | Bolt-On |
| Maximum | Vibration Speed 3,500 vpm |
| Maximum Force | 3,500 lbf |
| Application | Concrete Forming Equipment |
| Construction | Equipment |
| Average | Running Pressure 1,200 psi |
| Duty Cycle | Continuous |
| For Location | Outdoor |
Description

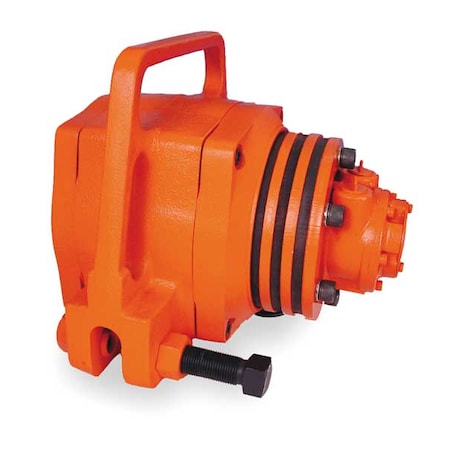

The Vibco HF-3500 is a hydraulic vibrator for concrete forming and construction equipment. It has a hydraulic flow rate of 2.4 gpm @ 1000 psi, a maximum inlet pressure of 3,000 psi, and 3/4 In.-16 SAE 8 inlet and outlet connections. This bolt-on unit measures 12.25 in long, 12.5 in wide, and 10.75 in high, with a maximum vibration speed of 3,500 vpm and a maximum force of 3,500 lbf.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
