- Bolt Circle Dia.: 8 1/8 in
- Duty Cycle: Intermittent
- Finish: Zinc Plated (Frame)
- Frame: 160ZBS
- Hz: 60 Hz
- Full Load Amps: 105.0/52.0-40.0
Specifications
| Part Number | EZ40S1BZ |
| Brand | U.S. Motors |
| Item | Pump Motor |
| Bolt Circle Dia. | 8 1/8 in |
| Duty Cycle | Intermittent |
| Finish | Zinc Plated (Frame) |
| Frame | 160ZBS |
| Hz | 60 Hz |
| Full Load Amps | 105.0/52.0-40.0 |
| Height | 13 5/16 in |
| HP | 40 |
| Ins. Class | F |
| Lead Length | 87 in |
| Length Less Shaft | 17 1/2 in |
| Max. Ambient Temp. | 50 Degrees C |
| Motor Application | Pump |
| Motor | Bearings Ball |
| Motor Design | Three-Phase |
| Motor Efficiency Group | Energy Efficient |
| UPC | 786382025458 |
Description

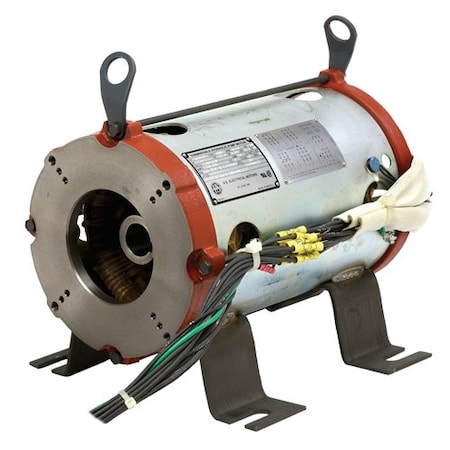

The U.S. Motors EZ40S1BZ is a three-phase pump motor rated at 40 HP. It operates at 230/460V AC, 60 Hz, with a 160ZBS frame and a nameplate RPM of 3,465/3,440. The motor has ball bearings, Class F insulation, a zinc-plated frame, and an intermittent duty cycle.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
