- Bearing Protection Double: Shields
- Bolt Circle Dia.: 5 7/8 in
- Duty Cycle: Continuous
- Frame: 56C
- Hz: 60/50
- Full Load Amps: 2.1-2.2/1.1
Specifications
| Part Number | EE254 |
| Brand | U.S. Motors |
| Item | Motor |
| Bearing Protection Double | Shields |
| Bolt Circle Dia. | 5 7/8 in |
| Duty Cycle | Continuous |
| Frame | 56C |
| Hz | 60/50 |
| Full Load Amps | 2.1-2.2/1.1 |
| Full Load | Amps @ 50Hz 2.1-2.2/1.1 |
| HP | 1/2 |
| Ins. Class | B |
| Length Less Shaft | 8 3/4 in |
| Max. Ambient Temp. | 40 Degrees C |
| Max. SF Amps | 2.8-2.7/1.35 |
| Motor Application | Pump |
| Motor | Bearings Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design Open | Dripproof |
| Features | HP @ 50Hz 1/2 |
| UPC | 786382067458 |
Description

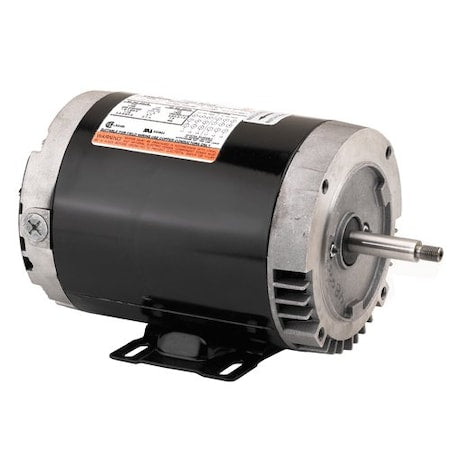

The U.S. Motors EE254 is a 1/2 HP, 3-phase motor with a 56C frame and an open dripproof enclosure. It operates at 3450 RPM on 60 Hz and 2850 RPM on 50 Hz, with a continuous duty cycle and Class B insulation. This pump motor has ball bearings with double shields and a maximum ambient temperature of 40 degrees C.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
