- Amps: 20 A
- AC Voltage Rating: 277/480V AC
- Circuit Breaker Type: Standard
- Number of Poles: 2
- DC Voltage Rating: Not Rated
- Circuit Breaker Actuator: Toggle
Specifications
| Part Number | EDB24020 |
| Brand | Square D |
| Item | Miniature Circuit Breaker |
| Amps | 20 A |
| AC Voltage Rating | 277/480V AC |
| Circuit Breaker Type | Standard |
| Number of Poles | 2 |
| DC Voltage Rating | Not Rated |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On |
| Compatible Panelboard/Load Center Series | NF |
| Phase | Single |
| Series | EDB |
| Max. AIR Rating | 18kA at 277/480V AC |
| For Use With Square D | NF Panelboards |
| Terminal Connection | Lug |
| Frame Size | 125A/EDB |
| Length | 5.66 in |
| Width | 1.96 in |
| Depth | 4.05 in |
| Max. Operating Temp. | 104 Degrees F |
| UPC | 785901879015 |
Description

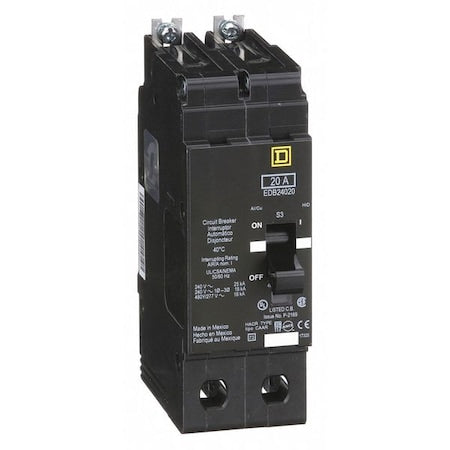

The Square D EDB24020 is a miniature circuit breaker from the EDB series with a 125A/EDB frame size. This 2-pole, standard unit is rated for 20 A and 277/480V AC, with a maximum AIR rating of 18kA at 277/480V AC. It features a toggle actuator, bolt-on mounting, and lug terminal connections for use with Square D NF panelboards.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
