- Body Dia.: 7.8 in
- Bolt Circle Dia.: 5 7/8 in
- CC Number: CC030A
- Conduit Box Position: F1
- Duty Cycle: Continuous
- Frame: 184JM
Specifications
| Part Number | DJ7C1K18M |
| Brand | U.S. Motors |
| Item | Motor |
| Body Dia. | 7.8 in |
| Bolt Circle Dia. | 5 7/8 in |
| CC Number | CC030A |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Frame | 184JM |
| Hz | 60 Hz |
| Full Load Amps | 31.4 |
| Height | 10 1/2 in |
| HP | 7 1/2 |
| Ins. Class | F |
| Length Less Shaft | 15 5/16 in |
| Max. Ambient Temp. | 40 Degrees C |
| Max. SF Amps | 37.0 |
| Motor Application | Close Coupled Pump |
| Motor | Bearings Ball |
| Motor Design | Three-Phase |
| Motor Enclosure Design Open | Dripproof |
| Motor Frame Material | Steel |
| UPC | 786382100308 |
Description

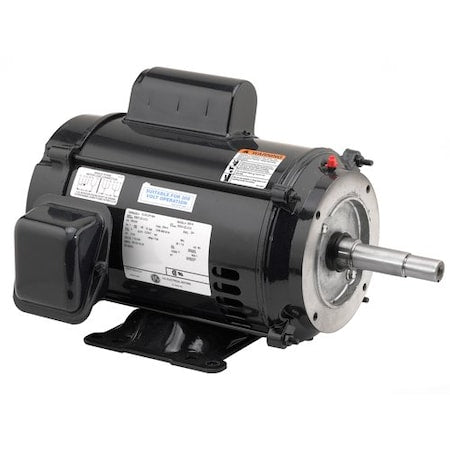

The U.S. Motors DJ7C1K18M is a 7-1/2 HP three-phase motor operating at 230V and 60 Hz. It has a 184JM frame, a continuous duty cycle, and an open dripproof enclosure with a steel frame. This close-coupled pump motor features ball bearings, Class F insulation, and a maximum ambient temperature of 40 degrees C.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
