- Coefficient of Volume (Cv): 10
- Nominal Valve Size: 1 in
- Connection Type - Side: 1 NPT
- Connection Type - Side: 2 Socket
- For Media: Chemicals
- Standards: ASTM D1784
Specifications
| Part Number | DAB1010UEE |
| Brand | Hayward Flow Control |
| Item | Manual Diaphragm Valve |
| Coefficient of Volume (Cv) | 10 |
| Nominal Valve Size | 1 in |
| Connection Type - Side | 1 NPT |
| Connection Type - Side | 2 Socket |
| For Media | Chemicals |
| Standards | ASTM D1784 |
| Diaphragm Material | EPDM |
| Seal Material | EPDM |
| Maximum Pressure - Operating | 150 psi |
| Operating Temperature - Maximum | 140 Degrees F |
| Diaphragm Valve Type | 2-Way |
| Handle Type | Wheel |
| Body Material | PVC |
| Special Features Position | Indicator |
| Inlet Connection Gender | Not Applicable |
| Overall Length | 5.2 in |
| UPC | 610377087056 |
Description

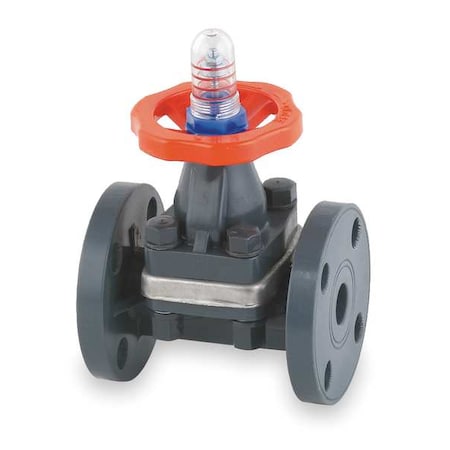

The Hayward Flow Control DAB1010UEE is a manual 2-way diaphragm valve with a 1-inch nominal size and a PVC body with EPDM diaphragm and seal materials. It has a coefficient of volume (Cv) of 10, a maximum operating pressure of 150 psi, and a maximum operating temperature of 140 degrees Fahrenheit. The valve features a wheel handle, a position indicator, and side connections of 1 NPT and 2 socket.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
