- Open: Drip Proof Motor Enclosure Design
- HP: 2
- Nameplate RPM: 3,515
- Frame: 145TC
- Voltage: 208-230/460V AC
- Hz: 60/50 Hz
Specifications
| Part Number | D2P1DC |
| Brand | U.S. Motors |
| Item | General Purpose Motor |
| Open | Drip Proof Motor Enclosure Design |
| HP | 2 |
| Nameplate RPM | 3,515 |
| Frame | 145TC |
| Voltage | 208-230/460V AC |
| Hz | 60/50 Hz |
| Three | Phase |
| Full Load Amps | 5.5-5/2.5 A |
| Base Motor Mounting Type | Rigid |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Service Factor | 1.15 |
| Ball Motor | Bearings |
| Motor Frame Material | Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Nominal Efficiency | 85.5 Percent |
| CSA | Certified |
| UL | Recognized |
| Features | Three-Phase, 3,001-3,600 |
| UPC | 786382093198 |
Description

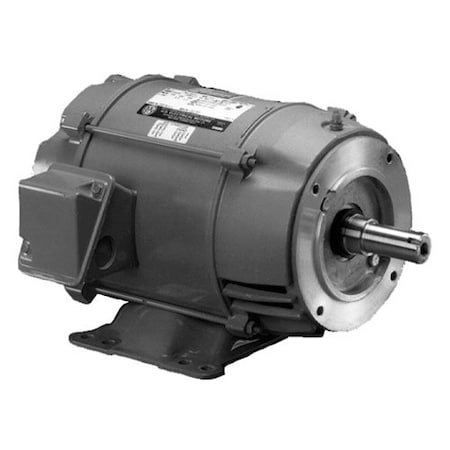

The U.S. Motors D2P1DC is a 2 HP general purpose motor with a drip proof enclosure design and a rigid base mounting type. It operates on 208-230/460V AC three-phase power at 60/50 Hz, with a nameplate speed of 3,515 RPM and a 145TC steel frame. The motor has ball bearings, Class F insulation, a 1.15 service factor, and is CSA Certified and UL Recognized.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
