- Flow Rate - Maximum: 32 gpm
- NFPA Size: D05
- Number of Positions: Three Positions
- Pressure - Maximum: 5,000 psi
- Valve Control: Directional Control
- Number of Ways: Four-Way
Specifications
| Part Number | D05S-2B-115A-35 |
| Brand | Chief |
| Item | Hydraulic Directional Valve |
| Flow Rate - Maximum | 32 gpm |
| NFPA Size | D05 |
| Number of Positions | Three Positions |
| Pressure - Maximum | 5,000 psi |
| Valve Control | Directional Control |
| Number of Ways | Four-Way |
| Voltage | 115V AC |
| Port Connections | Tank |
| Center Position | Closed Center |
| Series | DO5 |
| Holding Current | 1.1 A |
| Overall Height | 4.29 in |
| Frequency | 50/60 Hz |
| Inrush Current | 5.5 A |
| Overall Length | 9.43 in |
| Overall Width | 2.76 in |
| Return Mechanism | Spring |
| Seal Material | Buna-N |
| Tank | Pressure - Maximum 3,000 psi |
Description

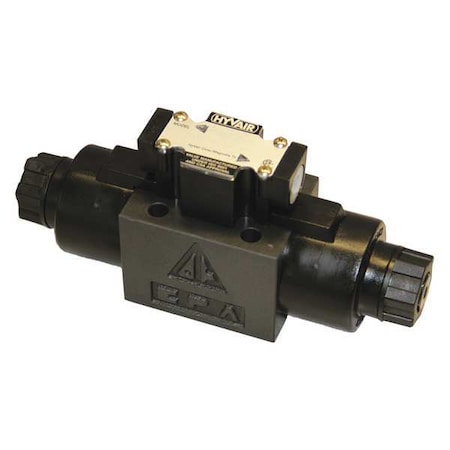

The Chief D05S-2B-115A-35 is a D05 hydraulic directional valve with three positions, four ways, and a spring return. It has a closed center position, a maximum flow rate of 32 gpm, and a maximum pressure of 5,000 psi. This 115V AC valve operates at 50/60 Hz with a holding current of 1.1 A and an inrush current of 5.5 A, and includes Buna-N seals.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
