- Voltage: Meter
- Input Range: 2 V DC
- DC: 20 V
- DC: 200 mV
- DC: 200 V
- Accuracy: 0.1 Percent
Specifications
| Part Number | CUB5VB00 |
| Brand | RED Lion Controls |
| Item | Voltage Meter |
| Voltage | Meter |
| Input Range | 2 V DC |
| DC | 20 V |
| DC | 200 mV |
| DC | 200 V |
| Accuracy | 0.1 Percent |
| Display | Span -19,999 to 99,999 |
| Display Digits | 5 |
| Display | Red/Green LED |
| Fits | 1.3 in x 2.68 in Cutout |
| Connector Type Screw | Clamp Terminal |
| Power Required | 18 to 36 V DC |
| AC | 24 V |
| USB | Interface |
| Output | Setpoint |
| NEMA | 4X / IP65 NEMA Rating |
| Depth | 1.86 in |
| Mounting | Clip, Panel |
| Style | CUB5V |
| Includes Mounting | Clip |
| Panel | Gasket |
| Manufacturers Warranty Length | Limited Lifetime |
| Features | LCD, RS-232, RS-485 |
Description

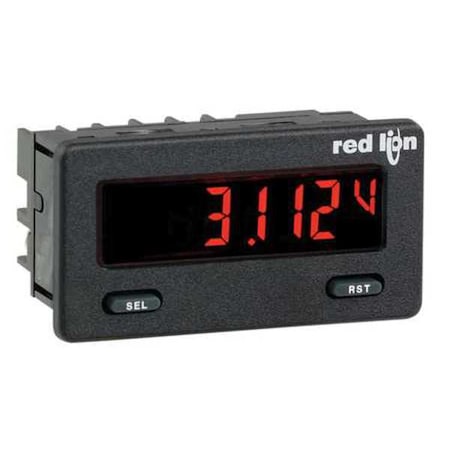

The RED Lion Controls CUB5VB00 is a digital voltage meter with a red/green LED display and 5 digits spanning -19,999 to 99,999. It accepts DC input ranges of 200 mV, 2 V, 20 V, and 200 V with 0.1 percent accuracy. The unit fits a 1.3 in x 2.68 in cutout, requires 18 to 36 V DC or 24 V AC power, and includes screw clamp terminals, setpoint output, USB interface, and a NEMA 4X / IP65 rating.
